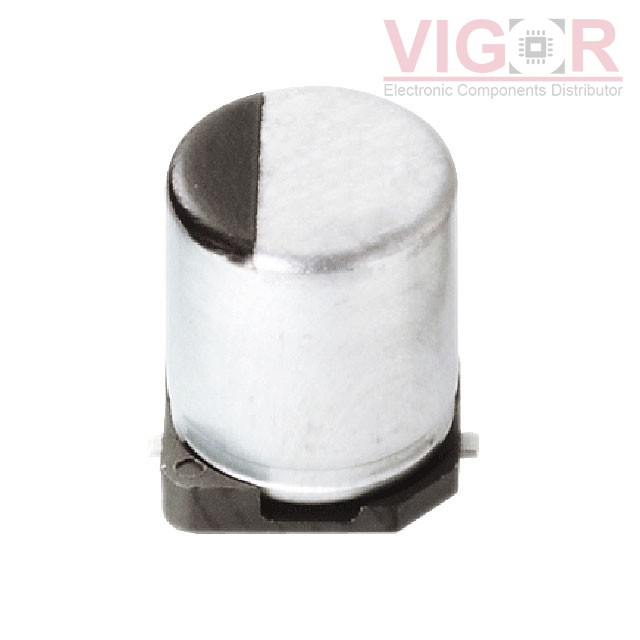

EEE-TC1C101P

Part No :: EEE-TC1C101P

Manufacturer: Panasonic

Description: CAP ALUM 100UF 20% 16V SMD

Catalog: Aluminum Electrolytic Capacitors

DataSheet: EEE-TC1C101P PDF

Availability: 528 pieces

Current price of EEE-TC1C101P is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

EEE-TC1C101P Specifications

Type	Description
Series:	TC
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Capacitance:	100 µF
Tolerance:	±20%
Voltage - Rated:	16 V
ESR (Equivalent Series Resistance):	200mOhm @ 100kHz
Lifetime @ Temp.:	3000 Hrs @ 125°C
Operating Temperature:	-40°C ~ 125°C
Polarization:	Polar
Ratings:	AEC-Q200
Applications:	Automotive, High Temperature Reflow
Ripple Current @ Low Frequency:	266.5 mA @ 120 Hz
Ripple Current @ High Frequency:	410 mA @ 100 kHz
Impedance:	-
Lead Spacing:	-
Size / Dimension:	0.315" Dia (8.00mm)
Height - Seated (Max):	0.413" (10.50mm)
Surface Mount Land Size:	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type:	Surface Mount
Package / Case:	Radial, Can - SMD
