0685H9200-01

Part No :: 0685H9200-01

Manufacturer: Bel Fuse, Inc.

VIGOR # :: 1902864

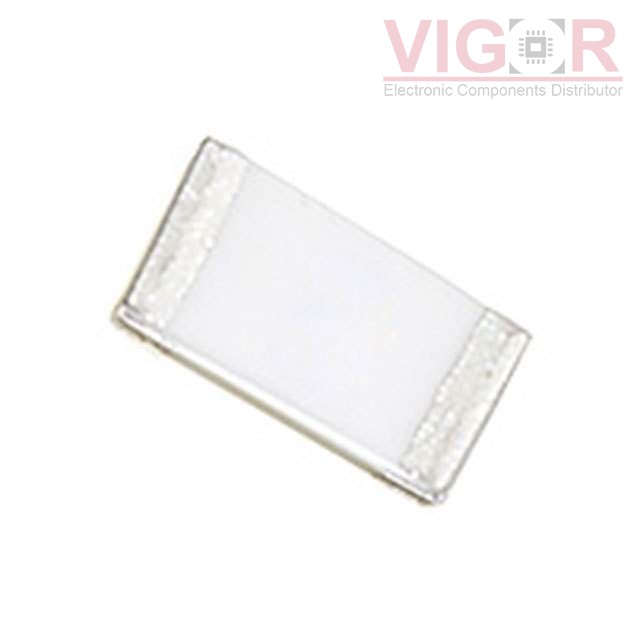

Description: FUSE BOARD MNT 20A 125VAC 32VDC

Catalog: Fuses

DataSheet: 0685H9200-01 PDF

Country of origin: -

Date code: -

0685H9200-01 Specifications

Type	Description
Series:	C1H
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Mounting Type:	Surface Mount
Fuse Type:	Board Mount (Cartridge Style Excluded)
Current Rating (Amps):	20 A
Voltage Rating - AC:	125 V
Voltage Rating - DC:	32 V
Response Time:	Fast Blow
Package / Case:	1206 (3216 Metric)
Breaking Capacity @ Rated Voltage:	150A AC, 300A DC
Melting I²t:	28.5
Approval Agency:	AEC-Q200, cURus
Operating Temperature:	-55°C ~ 125°C
Color:	-
Size / Dimension:	0.126" L x 0.062" W x 0.026" H (3.20mm x 1.58mm x 0.65mm)
