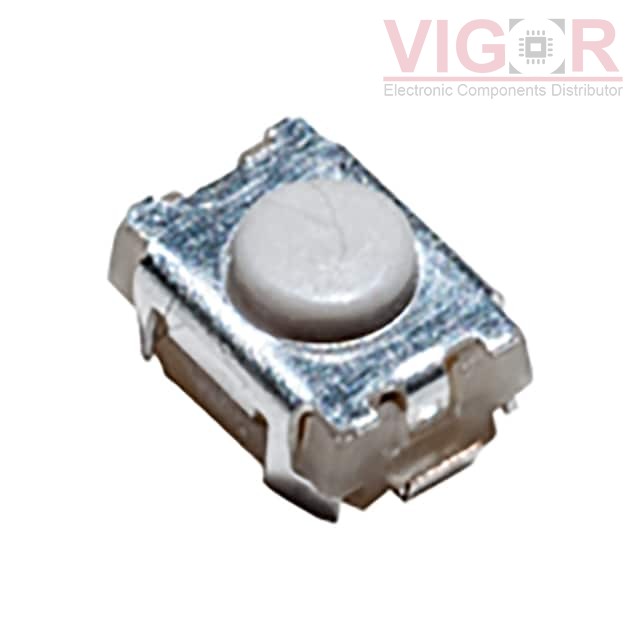

PTS820 J15KP SMTR LFS

Part No :: PTS820 J15KP SMTR LFS

Manufacturer: C&K

Description: SWITCH TACTILE SPST-NO 0.05A 12V

Catalog: Tactile Switches

DataSheet: PTS820 J15KP SMTR LFS PDF

Availability: 4234 pieces

Current price of PTS820 J15KP SMTR LFS is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PTS820 J15KP SMTR LFS Specifications

Type	Description
Series:	PTS820
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Circuit:	SPST-NO
Switch Function:	Off-Mom
Contact Rating @ Voltage:	0.05A @ 12VDC
Actuator Type:	Standard
Mounting Type:	Surface Mount
Actuator Height off PCB, Vertical:	1.50mm
Actuator Length, Right Angle:	-
Actuator Orientation:	Top Actuated
Termination Style:	J Lead
Outline:	3.90mm x 2.90mm
Illumination:	Non-Illuminated
Illumination Type, Color:	-
Illumination Voltage (Nominal):	-
Operating Force:	250gf
Ingress Protection:	-
Features:	Board Guide
Operating Temperature:	-40°C ~ 85°C
