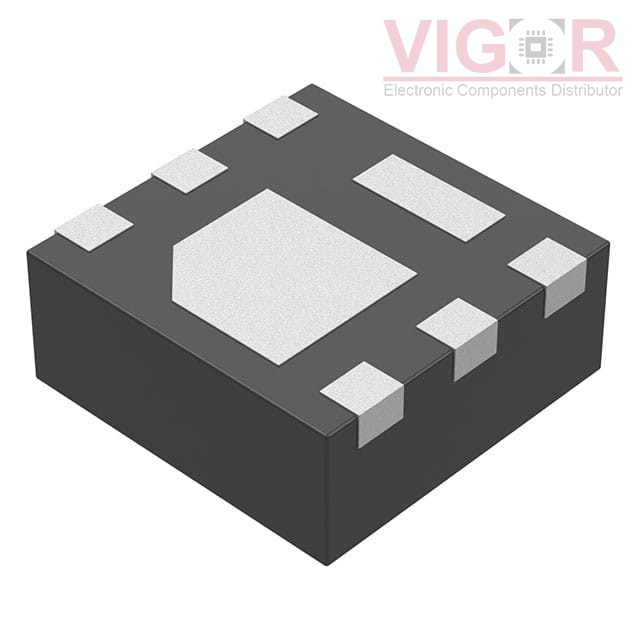

CSD13202Q2

Part No :: CSD13202Q2

Manufacturer: Texas Instruments

Description: MOSFET N-CH 12V 22A 6WSON

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: CSD13202Q2 PDF

Availability: 56513 pieces

Current price of CSD13202Q2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CSD13202Q2 Specifications

Type	Description
Series:	NexFET™
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	12 V
Current - Continuous Drain (Id) @ 25°C:	22A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	2.5V, 4.5V
Rds On (Max) @ Id, Vgs:	9.3mOhm @ 5A, 4.5V
Vgs(th) (Max) @ Id:	1.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	6.6 nC @ 4.5 V
Vgs (Max):	±8V
Input Capacitance (Ciss) (Max) @ Vds:	997 pF @ 6 V
FET Feature:	-
Power Dissipation (Max):	2.7W (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	6-WSON (2x2)
Package / Case:	6-VDFN Exposed Pad
