GPA040A120L-FD

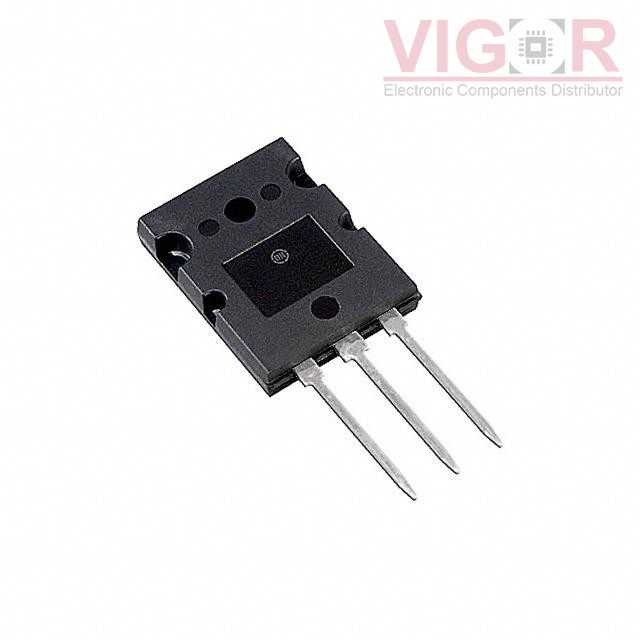

Image is for reference,
please contact us to get the real picture

Part No :: GPA040A120L-FD

Manufacturer: SemiQ

Description: IGBT 1200V 80A 480W TO264

Catalog: Transistors - IGBTs - Single

DataSheet: GPA040A120L-FD PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of GPA040A120L-FD is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

GPA040A120L-FD Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
IGBT Type:	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):	1200 V
Current - Collector (Ic) (Max):	80 A
Current - Collector Pulsed (Icm):	120 A
Vce(on) (Max) @ Vge, Ic:	2.6V @ 15V, 40A
Power - Max:	480 W
Switching Energy:	5.3mJ (on), 1.1mJ (off)
Input Type:	Standard
Gate Charge:	480 nC
Td (on/off) @ 25°C:	55ns/200ns
Test Condition:	600V, 40A, 5Ohm, 15V
Reverse Recovery Time (trr):	200 ns
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-264-3, TO-264AA
Supplier Device Package:	TO-264

Please confirm the specifications of the products when ordering.
