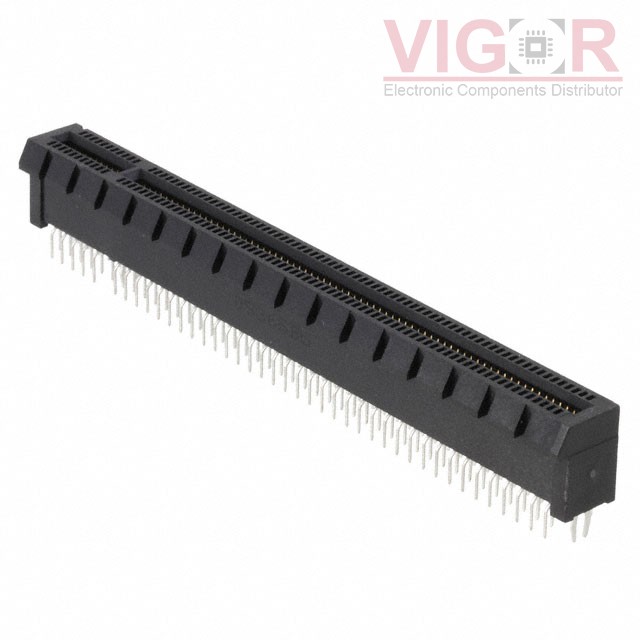

4-1775801-6

Part No :: 4-1775801-6

Manufacturer: TE Connectivity AMP Connectors

VIGOR # :: 2999480

Description: CONN PCI EXP FEMALE 164POS 0.039

Catalog: Card Edge Connectors - Edgeboard Connectors

DataSheet: 4-1775801-6 PDF

Country of origin: -

Date code: -

4-1775801-6 Specifications

Type	Description
Series:	-
Package:	Tray
Part Status:	Active
Card Type:	PCI Express™
Gender:	Female
Number of Positions/Bay/Row:	-
Number of Positions:	164
Card Thickness:	0.062" (1.57mm)
Number of Rows:	2
Pitch:	0.039" (1.00mm)
Read Out:	Dual
Features:	Board Lock, Locking Ramp
Mounting Type:	Through Hole
Termination:	Solder, Staggered
Contact Material:	Phosphor Bronze
Contact Finish:	Gold
Contact Finish Thickness:	30.0µin (0.76µm)
Contact Type:	-
Color:	Black
Flange Feature:	-
Operating Temperature:	-40°C ~ 85°C

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Feb 01 - Feb 05 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$2.55~~	~~$2.55~~
10	~~$2.45~~	~~$24.53~~
30	~~$2.26~~	~~$67.92~~
60	~~$2.17~~	~~$130.17~~
120	~~$2.08~~	~~$249.04~~
270	~~$1.84~~	~~$496.66~~
510	~~$1.79~~	~~$914.07~~
1020	~~$1.56~~	~~$1 587.60~~
2520	~~$1.46~~	~~$3 684.57~~

Current price of 4-1775801-6 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

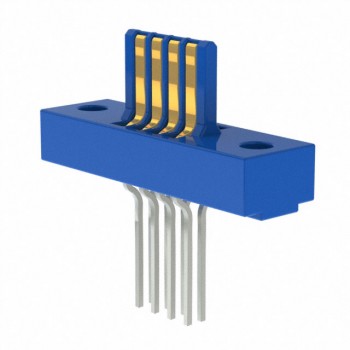

ECC04MMNN

CONN CARDEDGE MALE 8POS 0.100

ECC50MMRD

CONN CARDEDGE MALE 100POS 0.100

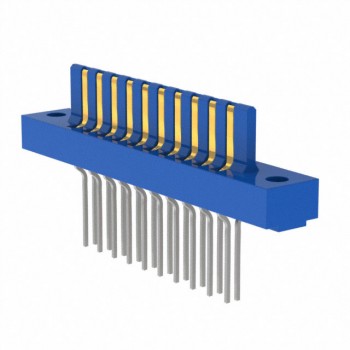

EBM10MMND
