HFW24R-2STE1LF

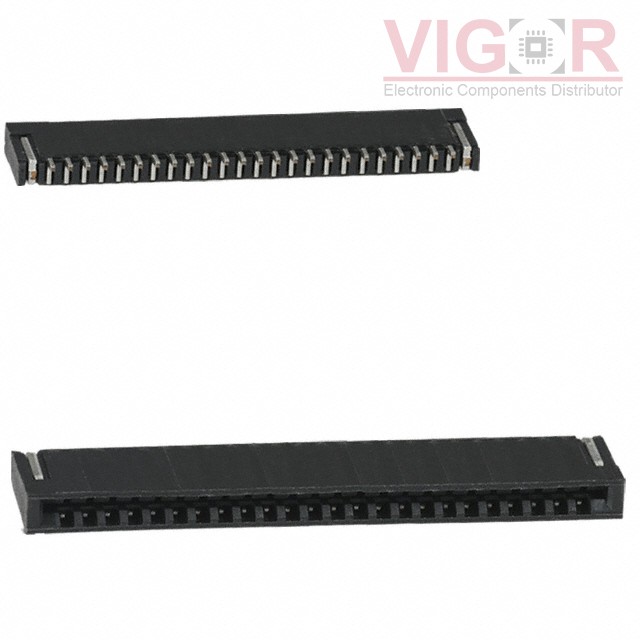

Image is for reference,
please contact us to get the real picture

Part No :: HFW24R-2STE1LF

Manufacturer: Storage & Server IO (Amphenol ICC)

Description: CONN FFC FPC TOP 24POS 1MM R/A

Catalog: FFC, FPC (Flat Flexible) Connectors

DataSheet: HFW24R-2STE1LF PDF

Availability: 2213 pieces

Unit Price: ~~$0.63000~~

Current price of HFW24R-2STE1LF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

HFW24R-2STE1LF Specifications

Type	Description
Series:	HFW-R
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Flat Flex Type:	FFC, FPC
Mounting Type:	Surface Mount, Right Angle
Connector/Contact Type:	Contacts, Top
Number of Positions:	24
Pitch:	0.039" (1.00mm)
Termination:	Solder
FFC, FCB Thickness:	0.30mm
Height Above Board:	0.075" (1.90mm)
Locking Feature:	-
Cable End Type:	Straight or Tapered
Contact Material:	Phosphor Bronze
Contact Finish:	Tin
Housing Material:	Polyamide (PA6T), Nylon 6T, Glass Filled
Actuator Material:	-
Features:	-
Voltage Rating:	100V
Operating Temperature:	-55°C ~ 105°C
Material Flammability Rating:	UL94 V-0
