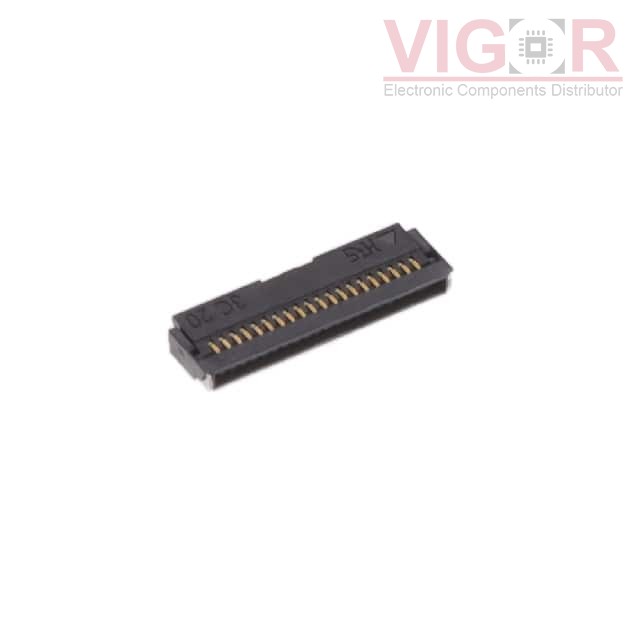

TF13BSA-20S-0.4SH(800)

Part No :: TF13BSA-20S-0.4SH(800)

Manufacturer: Hirose

VIGOR # :: 3263953

Description: CONN FFC 20POS 0.40MM SMD

Catalog: FFC, FPC (Flat Flexible) Connectors

DataSheet: TF13BSA-20S-0.4SH(800) PDF

Current price of TF13BSA-20S-0.4SH(800) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TF13BSA-20S-0.4SH(800) Specifications

Type	Description
Series:	TF13BSA
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Flat Flex Type:	FPC
Mounting Type:	Surface Mount, Right Angle
Connector/Contact Type:	Contacts, Bottom
Number of Positions:	20
Pitch:	0.016" (0.40mm)
Termination:	Solder
FFC, FCB Thickness:	0.20mm
Height Above Board:	0.035" (0.88mm)
Locking Feature:	Flip Lock, Backlock
Cable End Type:	Notched
Contact Material:	Phosphor Bronze
Contact Finish:	Gold
Housing Material:	Liquid Crystal Polymer (LCP)
Actuator Material:	Liquid Crystal Polymer (LCP)
Features:	Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating:	50V
Operating Temperature:	-55°C ~ 85°C
Material Flammability Rating:	UL94 V-0
