09120080301

09120080301

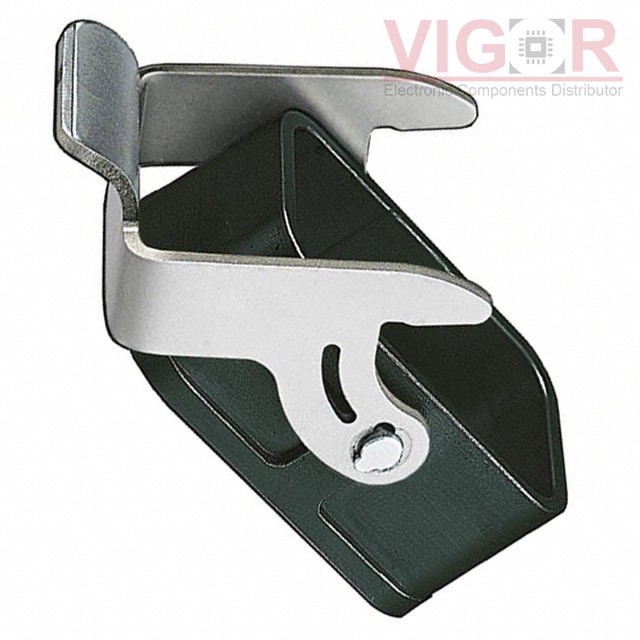

Image is for reference,
please contact us to get the real picture

Part No :

09120080301

Manufacturer
HARTING
Description
CONN BASE BOTTOM ENTRY
Catalog
Heavy Duty Connectors - Housings, Hoods, Bases
Shipped from
HK warehouse
Expected Shipping Date
Oct 06 - Oct 10 2025
DataSheet
09120080301 PDF
Availability
4 pieces
Unit Price
$18.38000

Current price of 09120080301 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

09120080301 Specifications
Type Description
Series:Han-Compact®
Package:Bulk
Part Status:Active
Connector Type:Base - Panel Mount
Style:Bottom Entry
Size:-
Lock Location:Locking Clip (1) on Base Bottom
Thread Size:-
Size / Dimension:1.807" L x 1.142" W x 0.728" H (45.90mm x 29.00mm x 18.50mm)
Housing Color:Black
Features:-
Ingress Protection:IP65 - Dust Tight, Water Resistant
Housing Material:Zinc, Die Cast
Housing Finish:Chromate
Operating Temperature:-40°C ~ 125°C
