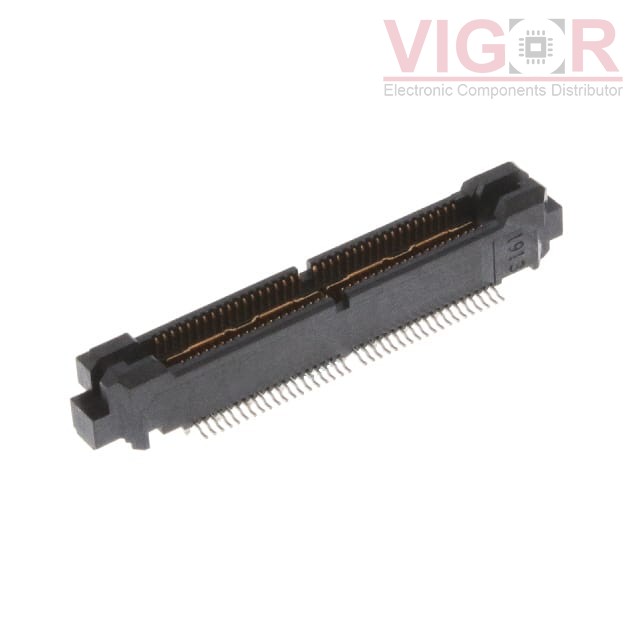

5767117-2

Part No :: 5767117-2

Manufacturer: TE Connectivity AMP Connectors

VIGOR # :: 3006051

Description: CONN PLUG 76POS SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: 5767117-2 PDF

Current price of 5767117-2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

5767117-2 Specifications

Type	Description
Series:	MICTOR
Package:	Tube
Part Status:	Active
Connector Type:	Plug, Outer Shroud Contacts
Number of Positions:	76
Pitch:	0.025" (0.64mm)
Number of Rows:	2
Mounting Type:	Surface Mount
Features:	Board Guide, Ground Bus (Plane)
Contact Finish:	Gold
Contact Finish Thickness:	30.0µin (0.76µm)
Mated Stacking Heights:	6.6mm, 15.62mm
Height Above Board:	0.251" (6.38mm)

Please confirm the specifications of the products when ordering.
