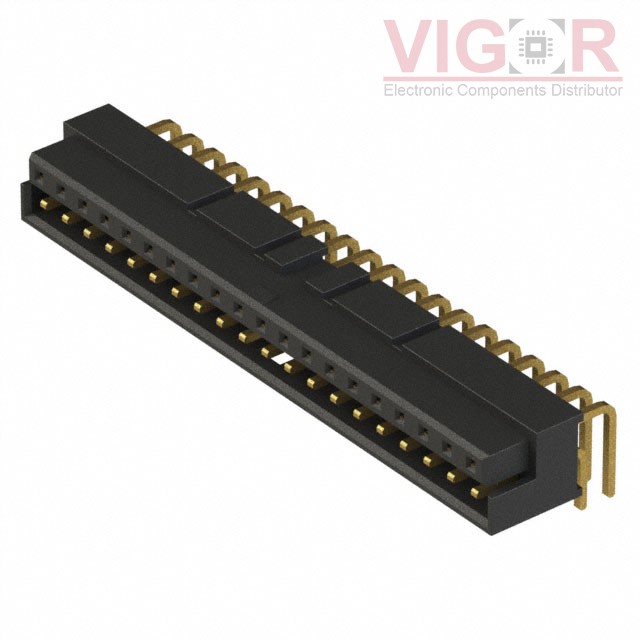

LS2-120-01-F-D-RA1-TR

Part No :: LS2-120-01-F-D-RA1-TR

Manufacturer: Samtec, Inc.

VIGOR # :: 3006903

Description: CONN SELF-MATE 40POS R/A GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: LS2-120-01-F-D-RA1-TR PDF

Current price of LS2-120-01-F-D-RA1-TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

LS2-120-01-F-D-RA1-TR Specifications

Type	Description
Series:	LS2
Package:	Tape & Reel (TR)
Part Status:	Active
Connector Type:	Self Mating, Non-Gendered
Number of Positions:	40
Pitch:	0.079" (2.00mm)
Number of Rows:	2
Mounting Type:	Through Hole, Right Angle
Features:	Latch Holder
Contact Finish:	Gold
Contact Finish Thickness:	Flash
Mated Stacking Heights:	-
Height Above Board:	0.208" (5.28mm)
