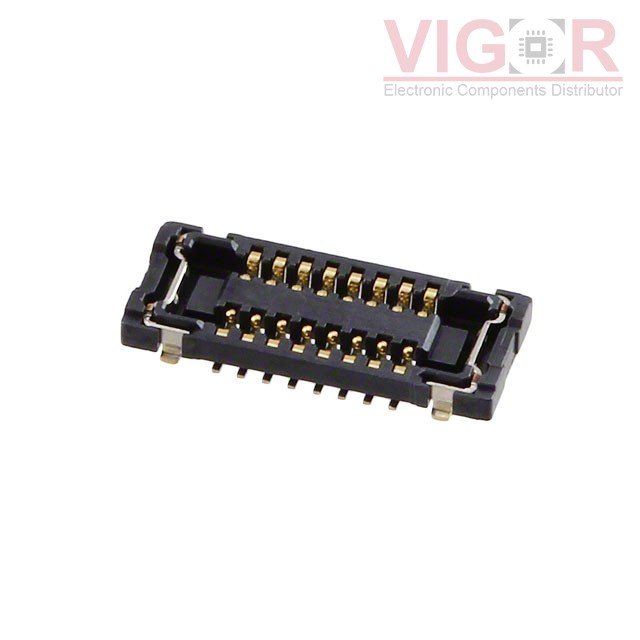

5035481680

Part No :: 5035481680

Manufacturer: Woodhead - Molex

VIGOR # :: 3011419

Description: CONN RCPT 16POS SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: 5035481680 PDF

Current price of 5035481680 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

5035481680 Specifications

Type	Description
Series:	SlimStack 503548
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	Receptacle, Center Strip Contacts
Number of Positions:	16
Pitch:	0.016" (0.40mm)
Number of Rows:	2
Mounting Type:	Surface Mount
Features:	Solder Retention
Contact Finish:	Gold
Contact Finish Thickness:	-
Mated Stacking Heights:	0.95mm
Height Above Board:	0.027" (0.68mm)
