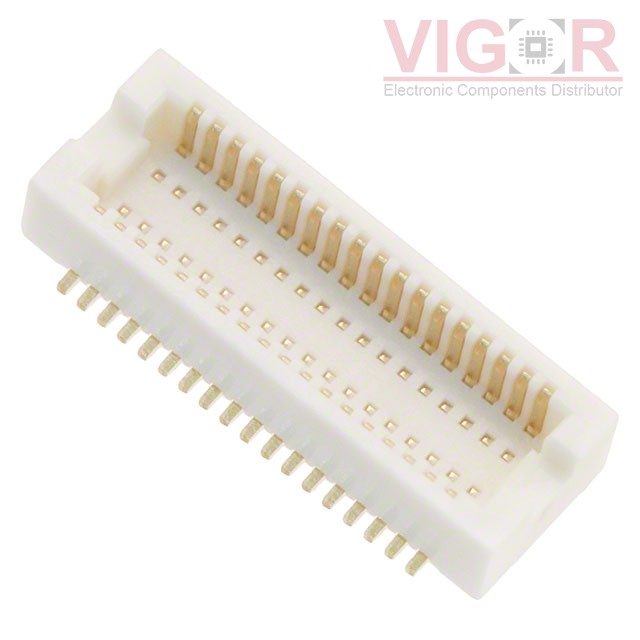

DF12B(5.0)-36DP-0.5V(86)

Part No :: DF12B(5.0)-36DP-0.5V(86)

Manufacturer: Hirose

VIGOR # :: 3011422

Description: CONN HDR 36POS SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: DF12B(5.0)-36DP-0.5V(86) PDF

Current price of DF12B(5.0)-36DP-0.5V(86) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

DF12B(5.0)-36DP-0.5V(86) Specifications

Type	Description
Series:	DF12
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Last Time Buy
Connector Type:	Header, Outer Shroud Contacts
Number of Positions:	36
Pitch:	0.020" (0.50mm)
Number of Rows:	2
Mounting Type:	Surface Mount
Features:	Solder Retention
Contact Finish:	Gold
Contact Finish Thickness:	8.00µin (0.203µm)
Mated Stacking Heights:	5mm
Height Above Board:	0.169" (4.30mm)
