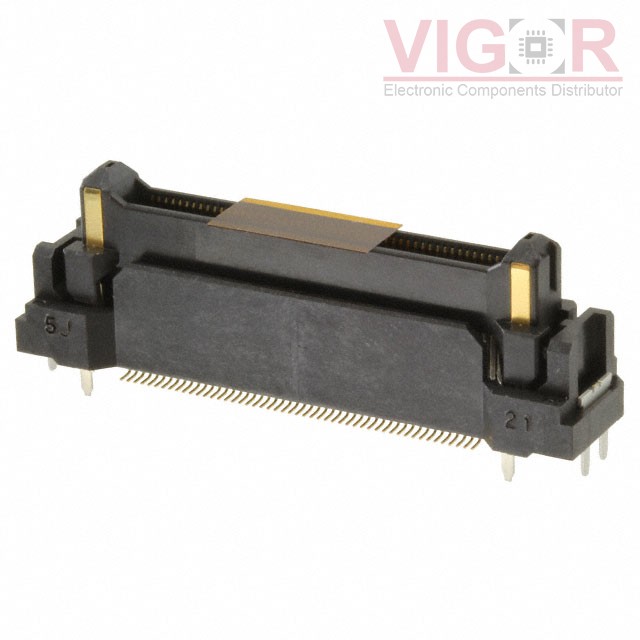

FX23-100P-0.5SV15

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

FX23-100P-0.5SV15 Specifications

Type	Description
Series:	FunctionMax™ FX23
Package:	Tray
Part Status:	Active
Connector Type:	Header, Outer Shroud Contacts
Number of Positions:	104 (100 + 4 Power)
Pitch:	0.020" (0.50mm)
Number of Rows:	2
Mounting Type:	Surface Mount
Features:	Board Guide
Contact Finish:	Gold
Contact Finish Thickness:	3.94µin (0.10µm)
Mated Stacking Heights:	15mm, 20mm
Height Above Board:	0.507" (12.88mm)
