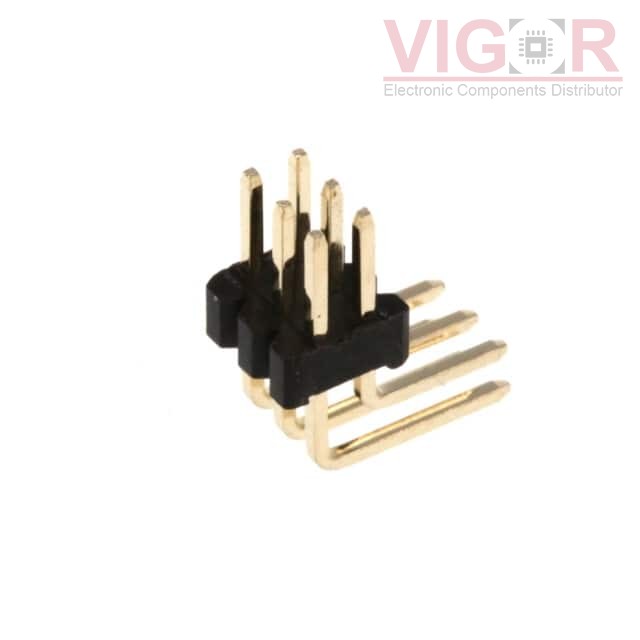

PR20B03HBDN

Part No :: PR20B03HBDN

Manufacturer: RIA Connect / METZ CONNECT

Description: PIN HEADER, THR, DUAL ROW, 1.27

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: PR20B03HBDN PDF

Availability: 2708 pieces

Unit Price: ~~$0.35000~~

Current price of PR20B03HBDN is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PR20B03HBDN Specifications

Type	Description
Series:	-
Package:	Box
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.050" (1.27mm)
Number of Positions:	6
Number of Rows:	2
Row Spacing - Mating:	0.050" (1.27mm)
Number of Positions Loaded:	All
Style:	Board to Board
Shrouding:	Unshrouded
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.118" (3.00mm)
Contact Length - Post:	0.110" (2.79mm)
Overall Contact Length:	-
Insulation Height:	0.059" (1.50mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	Flash
Contact Finish - Post:	-
Contact Material:	Copper Zinc
Insulation Material:	Polyethylene
Features:	-
Operating Temperature:	-40°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	-
Insulation Color:	Black
Current Rating (Amps):	-
Voltage Rating:	-
