1942-0-00-15-00-00-03-0

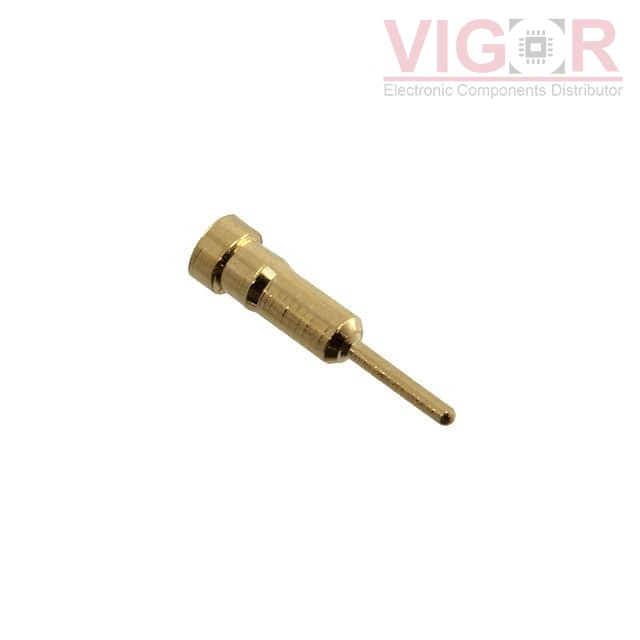

Image is for reference,
please contact us to get the real picture

Part No :: 1942-0-00-15-00-00-03-0

Manufacturer: Mill-Max

Description: CONN PC PIN CIRC 0.020DIA GOLD

Catalog: Terminals - PC Pin, Single Post Connectors

DataSheet: 1942-0-00-15-00-00-03-0 PDF

Availability: 16437 pieces

Unit Price: ~~$0.18000~~

Current price of 1942-0-00-15-00-00-03-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

1942-0-00-15-00-00-03-0 Specifications

Type	Description
Series:	1942
Package:	Bulk
Part Status:	Active
Terminal Type:	PC Pin
Terminal Style:	Single End
Pin Size - Above Flange:	0.020" (0.51mm) Dia
Pin Size - Below Flange:	-
Length - Above Flange:	0.260" (6.60mm)
Length - Below Flange:	-
Length - Overall:	0.290" (7.37mm)
Flange Diameter:	0.070" (1.77mm)
Mounting Hole Diameter:	0.057" (1.45mm)
Mounting Type:	Through Hole
Termination:	Press-Fit
Insulation:	Non-Insulated
Board Thickness:	-
Contact Material:	Brass Alloy
Contact Finish:	Gold
Contact Finish Thickness:	10.0µin (0.25µm)
