3922-0-01-15-00-00-08-0

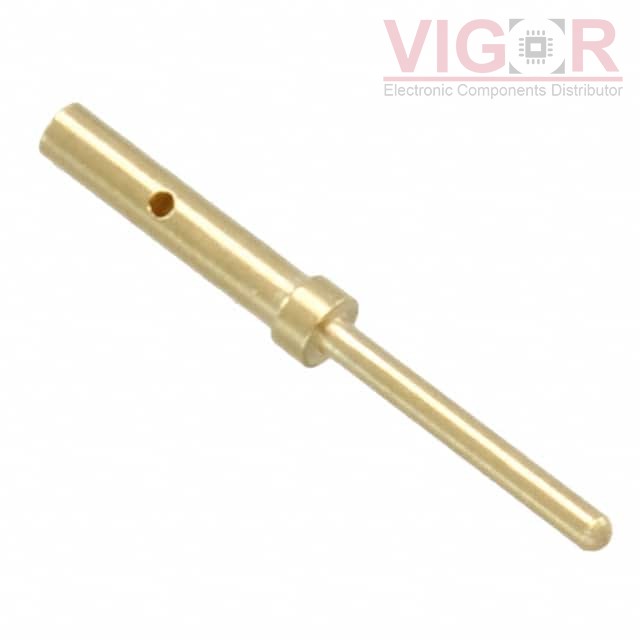

Product image
Product thumb
Part No :

3922-0-01-15-00-00-08-0

Manufacturer
Mill-Max
VIGOR # :

3195233

Description
CONN PC PIN CIRC 0.030DIA GOLD
Catalog
Terminals - PC Pin, Single Post Connectors
DataSheet
3922-0-01-15-00-00-08-0 PDF
Country of origin
Confirming
Date code
TBC
ads
3922-0-01-15-00-00-08-0 Specifications
Type Description
Series:3922
Package:Bulk
Part Status:Active
Terminal Type:PC Pin
Terminal Style:Wire
Pin Size - Above Flange:0.030" (0.76mm) Dia
Pin Size - Below Flange:0.047" (1.19mm) Dia
Length - Above Flange:0.267" (6.78mm)
Length - Below Flange:0.234" (5.94mm)
Length - Overall:0.532" (13.51mm)
Flange Diameter:0.061" (1.55mm)
Mounting Hole Diameter:-
Mounting Type:Free Hanging (In-Line)
Termination:Crimp
Insulation:Non-Insulated
Board Thickness:-
Contact Material:Brass Alloy
Contact Finish:Gold
Contact Finish Thickness:10.0µin (0.25µm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 6034
Shipped from
HK warehouse
Expected Shipping Date
Nov 17 - Nov 21 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $0.2800 $0.28
10 $0.2655 $2.65
25 $0.2277 $5.69
50 $0.1935 $9.68
100 $0.1859 $18.59
250 $0.1670 $41.75
500 $0.1594 $79.70
1000 $0.1328 $132.85
2500 $0.1215 $303.65

Current price of 3922-0-01-15-00-00-08-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
