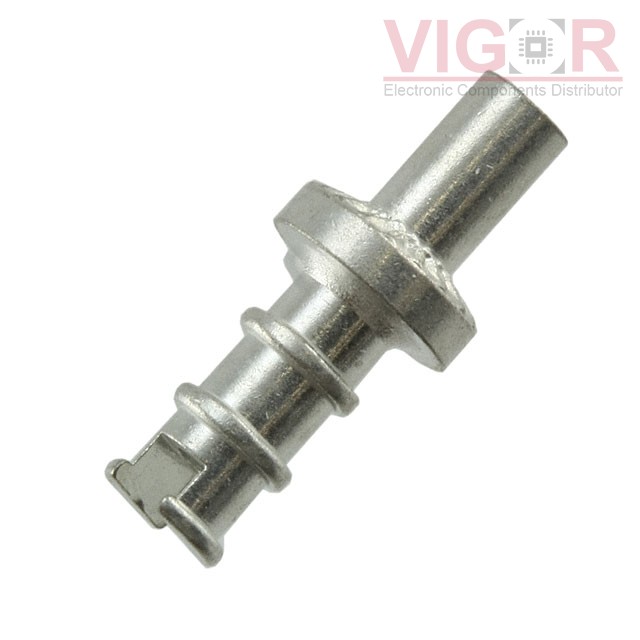

H2072ZL1

Part No :: H2072ZL1

Manufacturer: Harwin

Description: TERM TURRET SLOTTED L=6.52MM TIN

Catalog: Terminals - Turret Connectors

DataSheet: H2072ZL1 PDF

Availability: 305 pieces

Current price of H2072ZL1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

H2072ZL1 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Terminal Type:	Single End, Fork
Number of Turrets:	Triple
Length - Above Board:	0.257" (6.52mm)
Length - Below Flange:	0.125" (3.18mm)
Length - Overall:	0.382" (9.70mm)
Mounting Type:	Through Hole
Termination:	Swage
Flange Diameter:	0.156" (3.96mm)
Diameter - Turret Head:	0.100" (2.54mm)
Staking Side OD:	0.074" ~ 0.079" (1.87mm ~ 2.01mm)
Staking Side ID:	0.046" ~ 0.048" (1.17mm ~ 1.22mm)
Mounting Hole Diameter:	0.079" ~ 0.083" (2.01mm ~ 2.11mm)
Board Thickness:	0.094" (2.39mm)
Contact Material:	Brass Alloy
Contact Finish:	Tin
Contact Finish Thickness:	-
Insulation:	Non-Insulated
