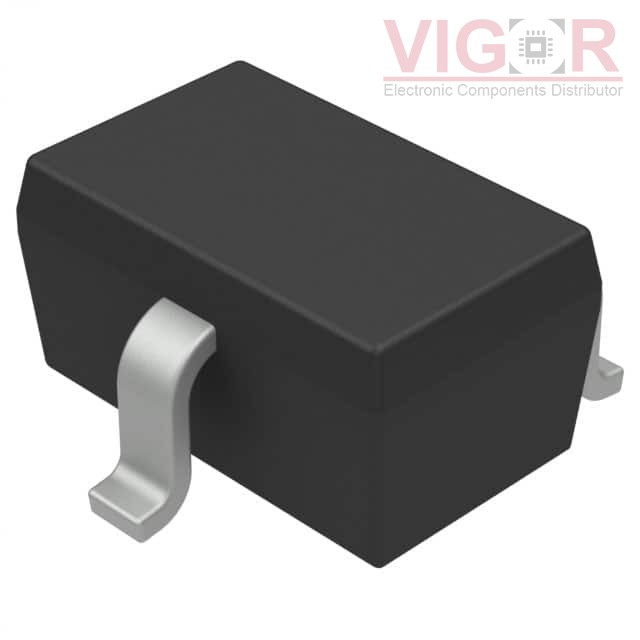

BAW56W,135

Part No :: BAW56W,135

Manufacturer: Nexperia

VIGOR # :: 2943815

Description: DIODE ARRAY GP 90V 150MA SOT323

Catalog: Diodes - Rectifiers - Arrays

DataSheet: BAW56W,135 PDF

Country of origin: -

Date code: -

BAW56W,135 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Diode Configuration:	1 Pair Common Anode
Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	90 V
Current - Average Rectified (Io) (per Diode):	150mA (DC)
Voltage - Forward (Vf) (Max) @ If:	1.25 V @ 150 mA
Speed:	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):	4 ns
Current - Reverse Leakage @ Vr:	500 nA @ 80 V
Operating Temperature - Junction:	150°C (Max)
Mounting Type:	Surface Mount
Package / Case:	SC-70, SOT-323
Supplier Device Package:	SOT-323
