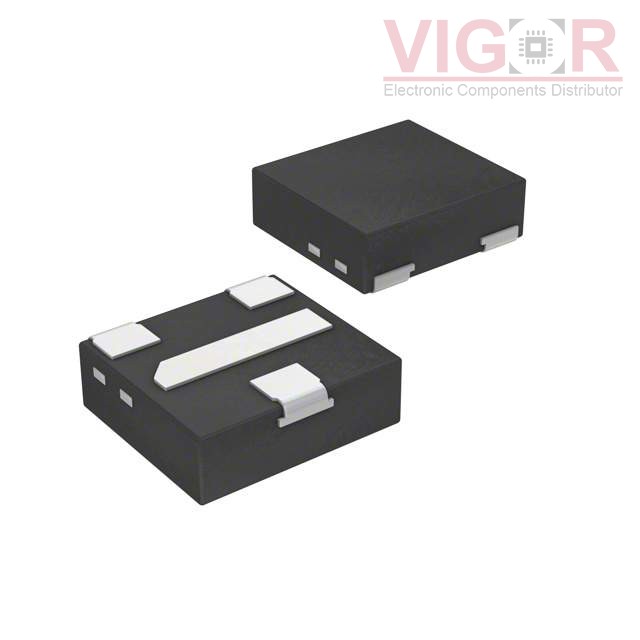

BAW56QAZ

Part No :: BAW56QAZ

Manufacturer: Nexperia

VIGOR # :: 2948525

Description: DIODE HS SW 90V 180MA SOT1215

Catalog: Diodes - Rectifiers - Arrays

DataSheet: BAW56QAZ PDF

Country of origin: -

Date code: -

BAW56QAZ Specifications

Type	Description
Series:	Automotive, AEC-Q101
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Diode Configuration:	1 Pair Common Anode
Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	90 V
Current - Average Rectified (Io) (per Diode):	180mA (DC)
Voltage - Forward (Vf) (Max) @ If:	1.25 V @ 150 mA
Speed:	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):	4 ns
Current - Reverse Leakage @ Vr:	500 nA @ 80 V
Operating Temperature - Junction:	150°C (Max)
Mounting Type:	Surface Mount
Package / Case:	3-XDFN Exposed Pad
Supplier Device Package:	DFN1010D-3
