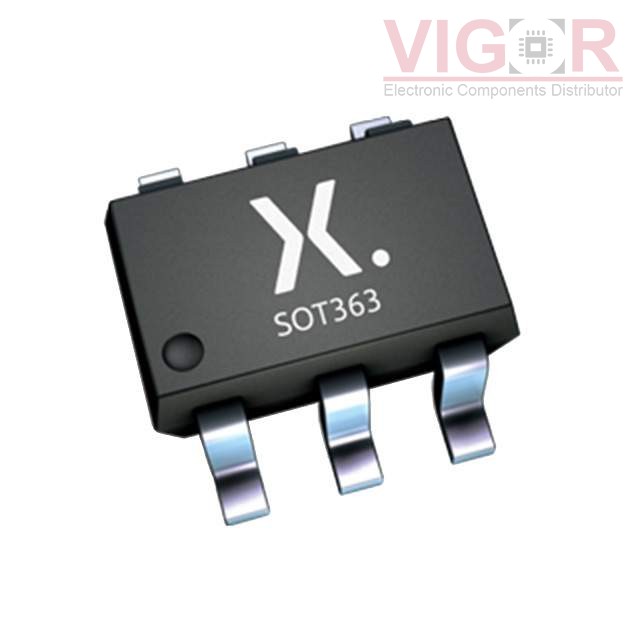

BAW56S/DG/B2,135

Part No :: BAW56S/DG/B2,135

Manufacturer: Nexperia

VIGOR # :: 4603960

Description: DIODE ARRAY GP 90V 250MA SOT363

Catalog: Diodes - Rectifiers - Arrays

DataSheet: BAW56S/DG/B2,135 PDF

Country of origin: -

Date code: -

BAW56S/DG/B2,135 Specifications

Type	Description
Series:	Automotive, AEC-Q101
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Diode Configuration:	2 Pair Common Anode
Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	90 V
Current - Average Rectified (Io) (per Diode):	250mA (DC)
Voltage - Forward (Vf) (Max) @ If:	1.25 V @ 150 mA
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	4 ns
Current - Reverse Leakage @ Vr:	500 nA @ 80 V
Operating Temperature - Junction:	150°C (Max)
Mounting Type:	Surface Mount
Package / Case:	6-TSSOP, SC-88, SOT-363
Supplier Device Package:	SOT-363
