1N5398

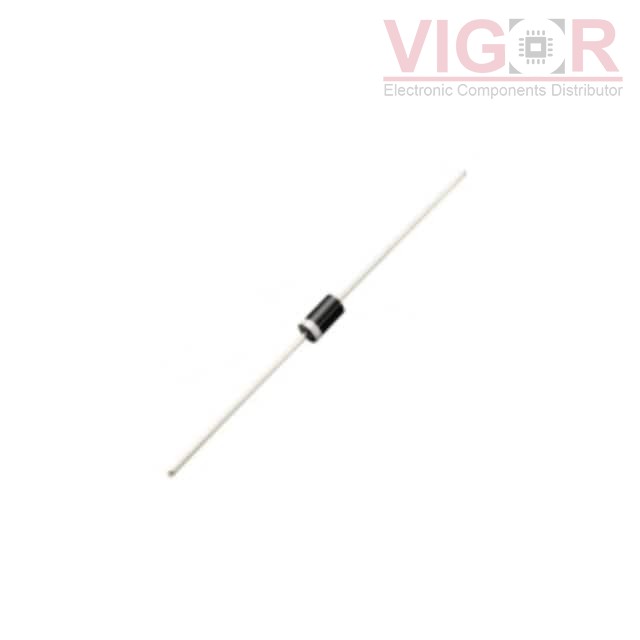

Image is for reference,
please contact us to get the real picture

Part No :: 1N5398

Manufacturer: NTE Electronics, Inc.

Description: R-SI 800V 1.5A

Catalog: Diodes - Rectifiers - Single

DataSheet: 1N5398 PDF

Availability: 3543 pieces

Unit Price: ~~$0.09920~~

Current price of 1N5398 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

1N5398 Specifications

Type	Description
Series:	-
Package:	Bag
Part Status:	Active
Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	800 V
Current - Average Rectified (Io):	1.5A
Voltage - Forward (Vf) (Max) @ If:	1.4 V @ 1.5 A
Speed:	Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	5 µA @ 800 V
Capacitance @ Vr, F:	25pF @ 4V, 1MHz
Mounting Type:	Through Hole
Package / Case:	DO-204AC, DO-15, Axial
Supplier Device Package:	DO-15
Operating Temperature - Junction:	-55°C ~ 150°C
