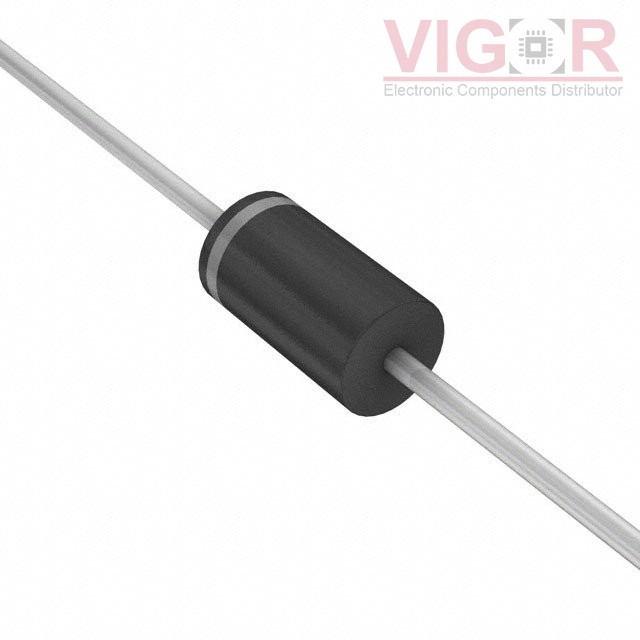

1N5820

Part No :: 1N5820

Manufacturer: VIGOR

VIGOR # :: 2917744

Description: RECTIFIER, SCHOTTKY, 3A, 20V

Catalog: Diodes - Rectifiers - Single

DataSheet: 1N5820 PDF

Country of origin: -

Date code: -

1N5820 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	20 V
Current - Average Rectified (Io):	3A
Voltage - Forward (Vf) (Max) @ If:	850 mV @ 9.4 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	2 mA @ 20 V
Capacitance @ Vr, F:	-
Mounting Type:	Through Hole
Package / Case:	DO-201AA, DO-27, Axial
Supplier Device Package:	DO-201
Operating Temperature - Junction:	-50°C ~ 150°C
