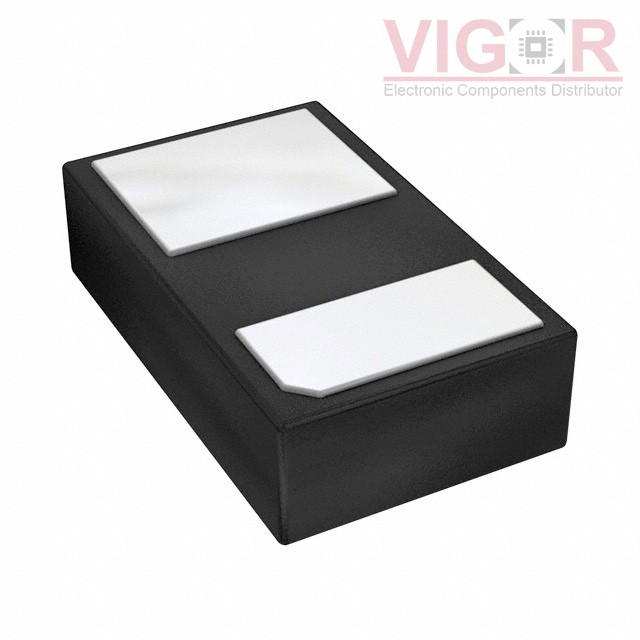

SDM05U20CSP-7

Part No :: SDM05U20CSP-7

Manufacturer: Zetex Semiconductors (Diodes Inc.)

VIGOR # :: 2932160

Description: DIODE SCHOTTKY 20V 500MA WLB1006

Catalog: Diodes - Rectifiers - Single

DataSheet: SDM05U20CSP-7 PDF

Country of origin: -

Date code: -

SDM05U20CSP-7 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	20 V
Current - Average Rectified (Io):	500mA
Voltage - Forward (Vf) (Max) @ If:	430 mV @ 500 mA
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	55 µA @ 20 V
Capacitance @ Vr, F:	46pF @ 4V, 1MHz
Mounting Type:	Surface Mount
Package / Case:	0402 (1006 Metric)
Supplier Device Package:	X3-WLB1006-2
Operating Temperature - Junction:	-55°C ~ 150°C
