TZ860N16KOFTIMHPSA1

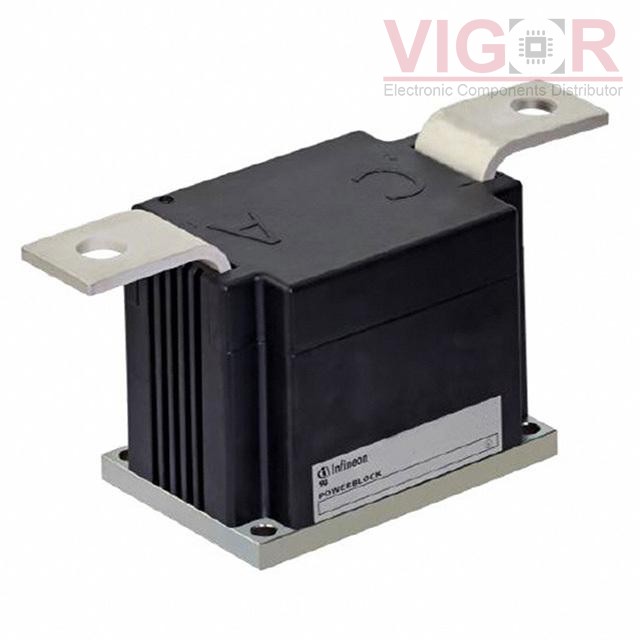

Image is for reference,
please contact us to get the real picture

Part No :: TZ860N16KOFTIMHPSA1

Manufacturer: VIGOR

Description: TZ860N16 - THYRISTOR / DIODE MOD

Catalog: Thyristors - SCRs - Modules

Shipped from: HK warehouse

Expected Shipping Date: Oct 01 - Oct 05 2025

DataSheet: TZ860N16KOFTIMHPSA1 PDF

Availability: 30 pieces

Unit Price: ~~$356.47000~~

Current price of TZ860N16KOFTIMHPSA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TZ860N16KOFTIMHPSA1 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Structure:	Single
Number of SCRs, Diodes:	1 SCR
Voltage - Off State:	1.6 kV
Current - On State (It (AV)) (Max):	860 A
Current - On State (It (RMS)) (Max):	1.5 A
Voltage - Gate Trigger (Vgt) (Max):	2 V
Current - Gate Trigger (Igt) (Max):	250 mA
Current - Non Rep. Surge 50, 60Hz (Itsm):	46000A @ 50Hz
Current - Hold (Ih) (Max):	500 mA
Operating Temperature:	125°C (TJ)
Mounting Type:	Chassis Mount
Package / Case:	Module

Please confirm the specifications of the products when ordering.
