MTM763250LBF

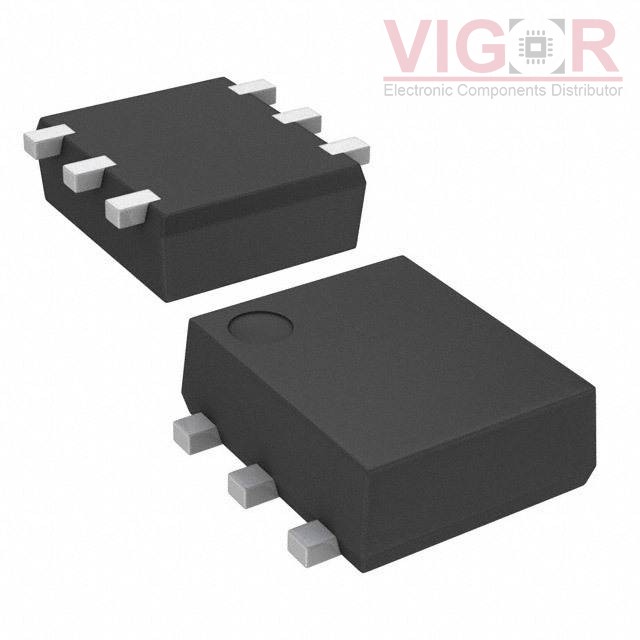

Image is for reference,
please contact us to get the real picture

Part No :: MTM763250LBF

Manufacturer: Panasonic

Description: MOSFET N/P-CH 20V 1.7A/1A 6-SMD

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: MTM763250LBF PDF

Availability: 0 pieces

Unit Price: ~~$0.18090~~

Current price of MTM763250LBF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

MTM763250LBF Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
FET Type:	N and P-Channel
FET Feature:	Logic Level Gate
Drain to Source Voltage (Vdss):	20V
Current - Continuous Drain (Id) @ 25°C:	1.7A, 1A
Rds On (Max) @ Id, Vgs:	120mOhm @ 1A, 4V
Vgs(th) (Max) @ Id:	1.3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	-
Input Capacitance (Ciss) (Max) @ Vds:	280pF @ 10V
Power - Max:	700mW
Operating Temperature:	150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	6-SMD, Flat Leads
Supplier Device Package:	WSMini6-F1-B

Please confirm the specifications of the products when ordering.
