FDMS3602AS

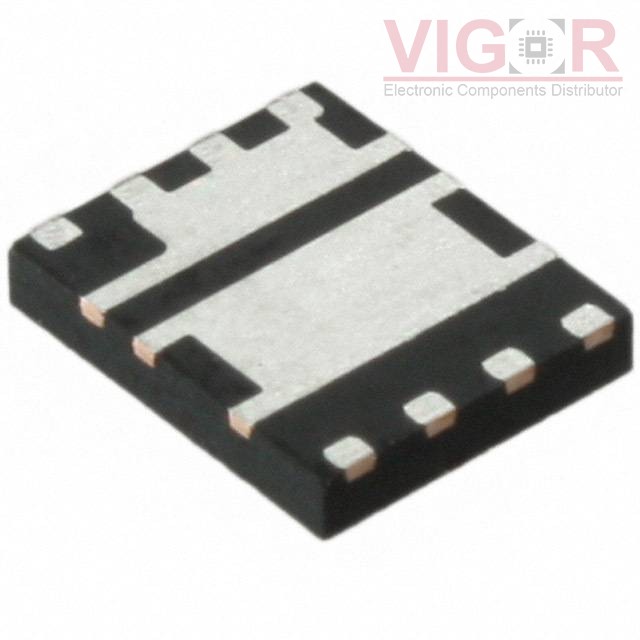

Image is for reference,
please contact us to get the real picture

Part No :: FDMS3602AS

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: MOSFET 2N-CH 25V 15A/26A POWER56

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: FDMS3602AS PDF

Availability: 6000 pieces

Unit Price: ~~$1.01250~~

Current price of FDMS3602AS is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

FDMS3602AS Specifications

Type	Description
Series:	PowerTrench®
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	2 N-Channel (Dual) Asymmetrical
FET Feature:	Logic Level Gate
Drain to Source Voltage (Vdss):	25V
Current - Continuous Drain (Id) @ 25°C:	15A, 26A
Rds On (Max) @ Id, Vgs:	5.6mOhm @ 15A, 10V
Vgs(th) (Max) @ Id:	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	27nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds:	1770pF @ 13V
Power - Max:	2.2W, 2.5W
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	8-PowerTDFN
Supplier Device Package:	Power56

Please confirm the specifications of the products when ordering.
