FDMS3606S

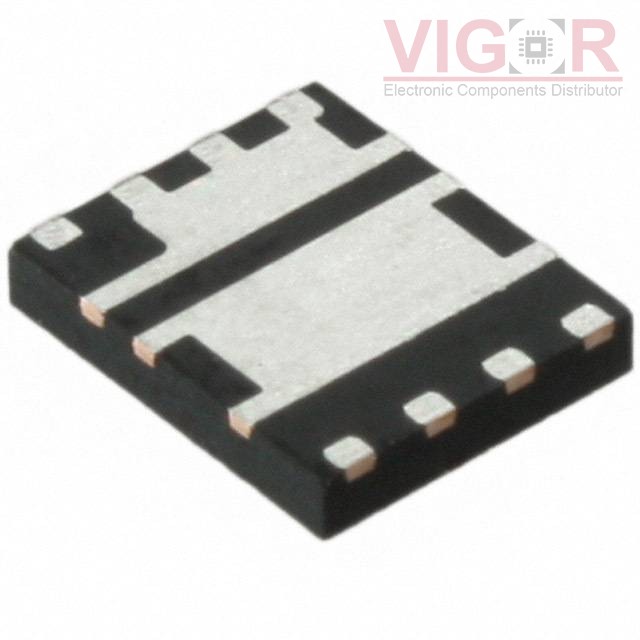

Image is for reference,
please contact us to get the real picture

Part No :: FDMS3606S

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: MOSFET 2N-CH 30V 13A/27A POWER56

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: FDMS3606S PDF

Availability: 0 pieces

Unit Price: ~~$0.62185~~

Current price of FDMS3606S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

FDMS3606S Specifications

Type	Description
Series:	PowerTrench®
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	2 N-Channel (Dual) Asymmetrical
FET Feature:	Logic Level Gate
Drain to Source Voltage (Vdss):	30V
Current - Continuous Drain (Id) @ 25°C:	13A, 27A
Rds On (Max) @ Id, Vgs:	8mOhm @ 13A, 10V
Vgs(th) (Max) @ Id:	2.7V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	29nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds:	1785pF @ 15V
Power - Max:	1W
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	8-PowerTDFN
Supplier Device Package:	Power56
