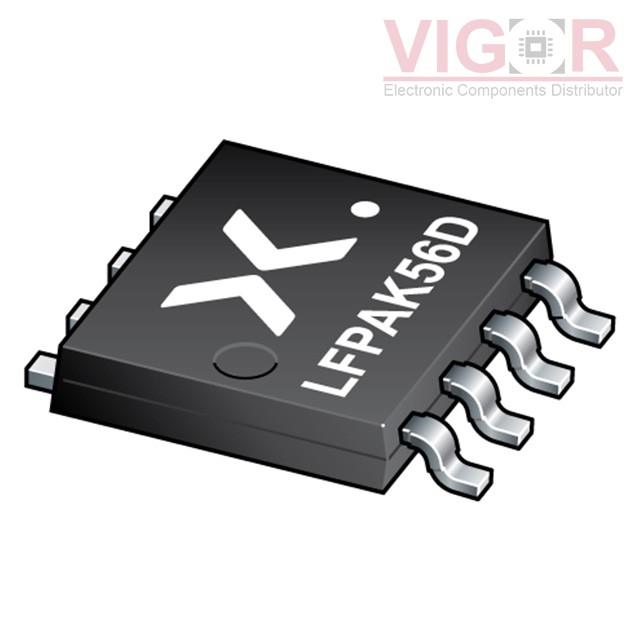

BUK9K20-80EX

Part No :: BUK9K20-80EX

Manufacturer: Nexperia

VIGOR # :: 2980344

Description: MOSFET 2 N-CH 80V 23A LFPAK56D

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: BUK9K20-80EX PDF

Current price of BUK9K20-80EX is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

BUK9K20-80EX Specifications

Type	Description
Series:	Automotive, AEC-Q101
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	2 N-Channel (Dual)
FET Feature:	Logic Level Gate
Drain to Source Voltage (Vdss):	80V
Current - Continuous Drain (Id) @ 25°C:	23A (Ta)
Rds On (Max) @ Id, Vgs:	17mOhm @ 10A, 10V
Vgs(th) (Max) @ Id:	2.1V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	25.5nC @ 5V
Input Capacitance (Ciss) (Max) @ Vds:	3462pF @ 25V
Power - Max:	68W
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	SOT-1205, 8-LFPAK56
Supplier Device Package:	LFPAK56D
