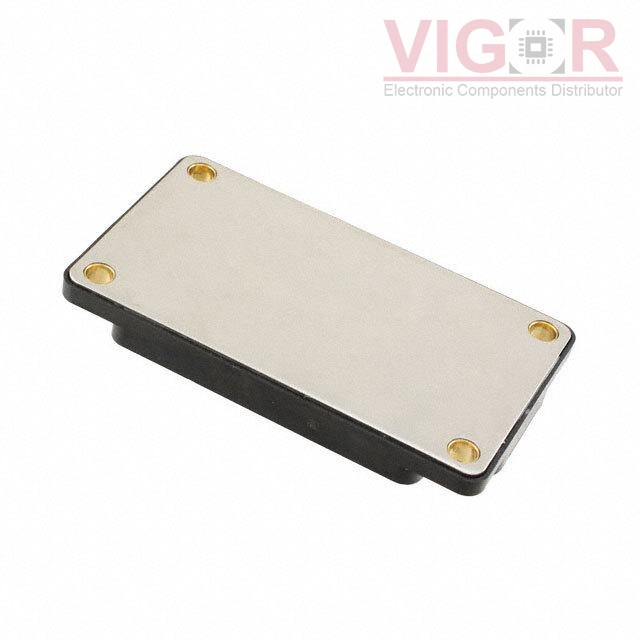

APTM08TAM04PG

Part No :: APTM08TAM04PG

Manufacturer: Roving Networks / Microchip Technology

VIGOR # :: 2980595

Description: MOSFET 6N-CH 75V 120A SP6-P

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: APTM08TAM04PG PDF

Current price of APTM08TAM04PG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

APTM08TAM04PG Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
FET Type:	6 N-Channel (3-Phase Bridge)
FET Feature:	Standard
Drain to Source Voltage (Vdss):	75V
Current - Continuous Drain (Id) @ 25°C:	120A
Rds On (Max) @ Id, Vgs:	4.5mOhm @ 60A, 10V
Vgs(th) (Max) @ Id:	4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	153nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds:	4530pF @ 25V
Power - Max:	138W
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Chassis Mount
Package / Case:	SP6
Supplier Device Package:	SP6-P
