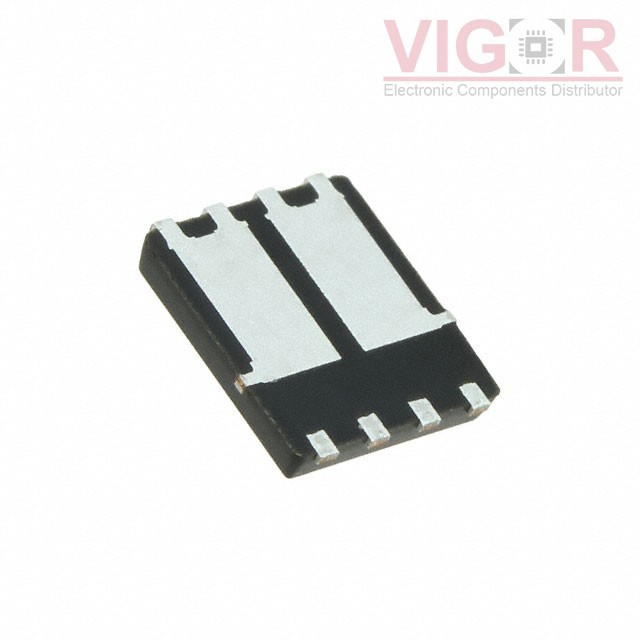

IPG20N06S3L-35

Part No :: IPG20N06S3L-35

Manufacturer: IR (Infineon Technologies)

VIGOR # :: 2980645

Description: MOSFET 2N-CH 55V 20A TDSON-8

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: IPG20N06S3L-35 PDF

Current price of IPG20N06S3L-35 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

IPG20N06S3L-35 Specifications

Type	Description
Series:	OptiMOS™
Package:	Tape & Reel (TR)
Part Status:	Obsolete
FET Type:	2 N-Channel (Dual)
FET Feature:	Logic Level Gate
Drain to Source Voltage (Vdss):	55V
Current - Continuous Drain (Id) @ 25°C:	20A
Rds On (Max) @ Id, Vgs:	35mOhm @ 11A, 10V
Vgs(th) (Max) @ Id:	2.2V @ 15µA
Gate Charge (Qg) (Max) @ Vgs:	23nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds:	1730pF @ 25V
Power - Max:	30W
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	8-PowerVDFN
Supplier Device Package:	PG-TDSON-8-4

Please confirm the specifications of the products when ordering.
