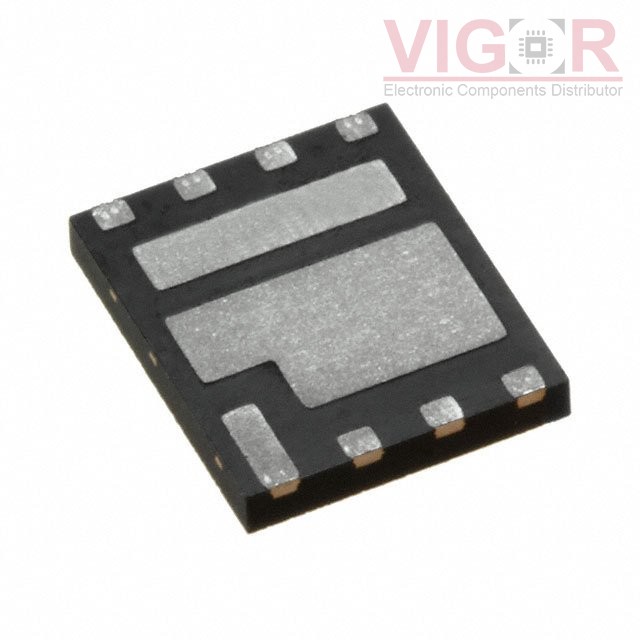

FDPC8014AS

Part No :: FDPC8014AS

Manufacturer: VIGOR

VIGOR # :: 2980677

Description: 25V ASYMMETRIC DUAL N-CHANNEL PO

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: FDPC8014AS PDF

Current price of FDPC8014AS is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

FDPC8014AS Specifications

Type	Description
Series:	PowerTrench®
Package:	Bulk
Part Status:	Active
FET Type:	2 N-Channel (Dual) Asymmetrical
FET Feature:	Standard
Drain to Source Voltage (Vdss):	25V
Current - Continuous Drain (Id) @ 25°C:	20A, 40A
Rds On (Max) @ Id, Vgs:	3.8mOhm @ 20A, 10V
Vgs(th) (Max) @ Id:	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	35nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds:	2375pF @ 13V
Power - Max:	2.1W, 2.3W
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	8-PowerWDFN
Supplier Device Package:	Power Clip 56

Please confirm the specifications of the products when ordering.
