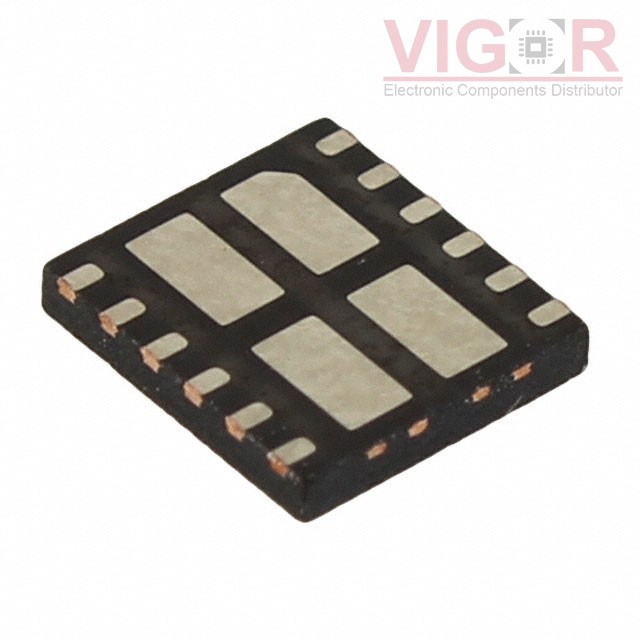

FDMQ8203

Part No :: FDMQ8203

Manufacturer: Sanyo Semiconductor/ON Semiconductor

VIGOR # :: 2980689

Description: MOSFET 2N/2P-CH 100V/80V 12-MLP

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: FDMQ8203 PDF

Current price of FDMQ8203 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

FDMQ8203 Specifications

Type	Description
Series:	GreenBridge™ PowerTrench®
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	2 N and 2 P-Channel (H-Bridge)
FET Feature:	Logic Level Gate
Drain to Source Voltage (Vdss):	100V, 80V
Current - Continuous Drain (Id) @ 25°C:	3.4A, 2.6A
Rds On (Max) @ Id, Vgs:	110mOhm @ 3A, 10V
Vgs(th) (Max) @ Id:	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	5nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds:	210pF @ 50V
Power - Max:	2.5W
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	12-WDFN Exposed Pad
Supplier Device Package:	12-MLP (5x4.5)

Please confirm the specifications of the products when ordering.
