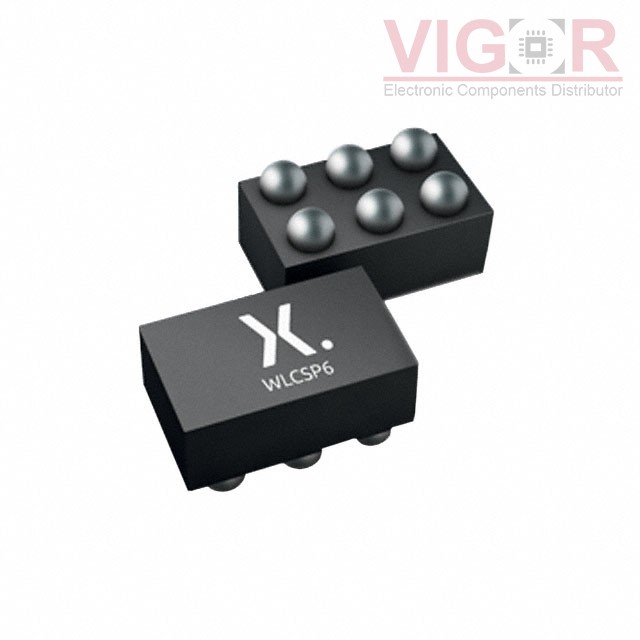

PMCM6501UNEZ

Part No :: PMCM6501UNEZ

Manufacturer: Nexperia

Description: MOSFET N-CH 20V 8.7A 6WLCSP

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: PMCM6501UNEZ PDF

Availability: 6665 pieces

Current price of PMCM6501UNEZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PMCM6501UNEZ Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	20 V
Current - Continuous Drain (Id) @ 25°C:	8.7A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	1.5V, 4.5V
Rds On (Max) @ Id, Vgs:	21mOhm @ 3A, 4.5V
Vgs(th) (Max) @ Id:	0.9V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	6.2 nC @ 4.5 V
Vgs (Max):	±8V
Input Capacitance (Ciss) (Max) @ Vds:	105 pF @ 10 V
FET Feature:	-
Power Dissipation (Max):	400mW
Operating Temperature:	150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	6-WLCSP (1.48x.98)
Package / Case:	6-XFBGA, WLCSP
