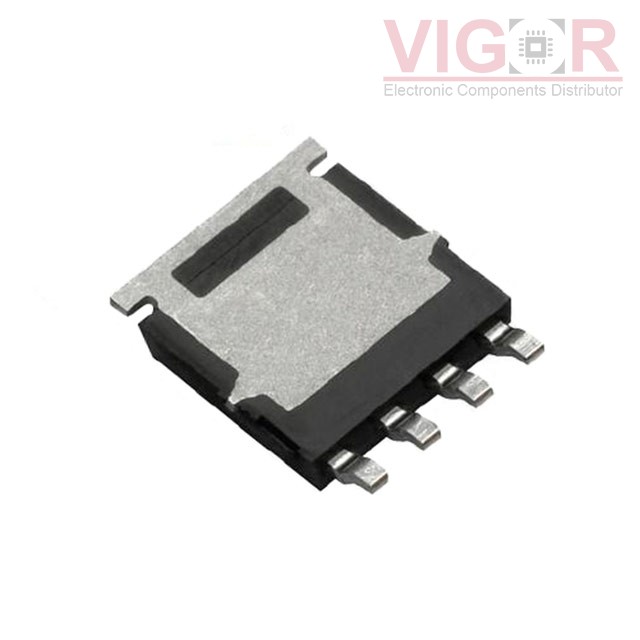

SQJA78EP-T1_GE3

Part No :: SQJA78EP-T1_GE3

Manufacturer: Vishay / Siliconix

Description: MOSFET N-CH 80V 72A PPAK SO-8

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: SQJA78EP-T1_GE3 PDF

Availability: 2886 pieces

Current price of SQJA78EP-T1_GE3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SQJA78EP-T1_GE3 Specifications

Type	Description
Series:	Automotive, AEC-Q101, TrenchFET®
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	80 V
Current - Continuous Drain (Id) @ 25°C:	72A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	5.3mOhm @ 10A, 10V
Vgs(th) (Max) @ Id:	3.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	95 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	5100 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	68W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	PowerPAK® SO-8
Package / Case:	PowerPAK® SO-8
