TPH2900ENH,L1Q

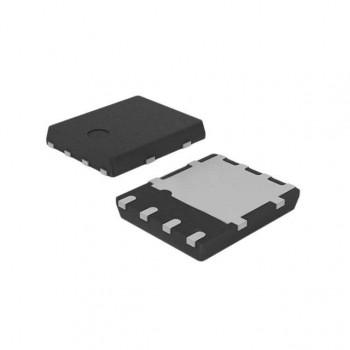

Image is for reference,
please contact us to get the real picture

Part No :: TPH2900ENH,L1Q

Manufacturer: Toshiba Electronic Devices and Storage Corporation

Description: MOSFET N-CH 200V 33A 8SOP

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: TPH2900ENH,L1Q PDF

Availability: 1064 pieces

Unit Price: ~~$2.46000~~

Current price of TPH2900ENH,L1Q is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TPH2900ENH,L1Q Specifications

Type	Description
Series:	U-MOSVIII-H
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	200 V
Current - Continuous Drain (Id) @ 25°C:	33A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	29mOhm @ 16.5A, 10V
Vgs(th) (Max) @ Id:	4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	22 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	2200 pF @ 100 V
FET Feature:	-
Power Dissipation (Max):	78W (Tc)
Operating Temperature:	150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	8-SOP Advance (5x5)
Package / Case:	8-PowerVDFN

Please confirm the specifications of the products when ordering.
