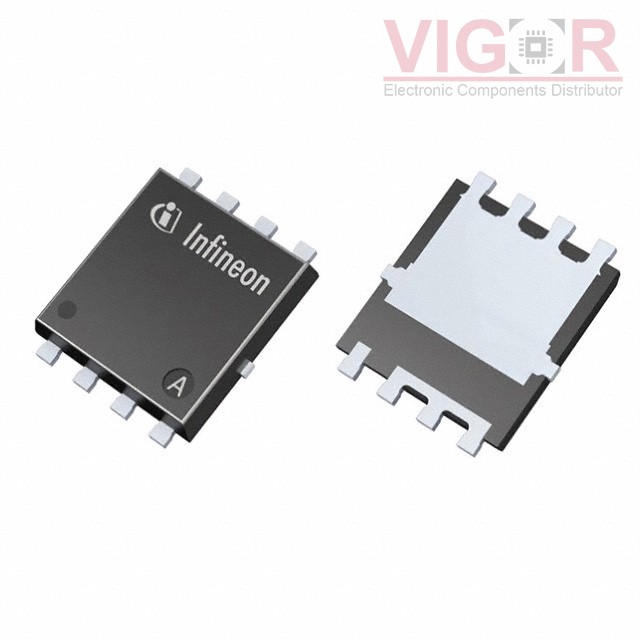

IPC90N04S5L3R3ATMA1

Part No :: IPC90N04S5L3R3ATMA1

Manufacturer: IR (Infineon Technologies)

Description: MOSFET N-CH 40V 90A 8TDSON-34

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: IPC90N04S5L3R3ATMA1 PDF

Availability: 1447 pieces

Unit Price: ~~$0.96000~~

Current price of IPC90N04S5L3R3ATMA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

IPC90N04S5L3R3ATMA1 Specifications

Type	Description
Series:	Automotive, AEC-Q101, OptiMOS™
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	40 V
Current - Continuous Drain (Id) @ 25°C:	90A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	3.3mOhm @ 45A, 10V
Vgs(th) (Max) @ Id:	2V @ 23µA
Gate Charge (Qg) (Max) @ Vgs:	40 nC @ 10 V
Vgs (Max):	±16V
Input Capacitance (Ciss) (Max) @ Vds:	2145 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	62W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	PG-TDSON-8-34
Package / Case:	8-PowerTDFN
