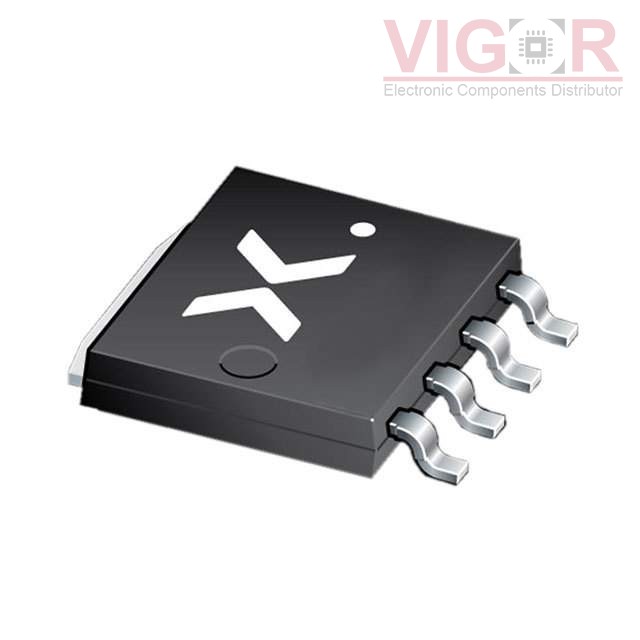

PSMN5R6-100YSFX

Part No :: PSMN5R6-100YSFX

Manufacturer: Nexperia

Description: MOSFET N-CH 100V 158A LFPAK56

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: PSMN5R6-100YSFX PDF

Availability: 0 pieces

Unit Price: ~~$1.08217~~

Current price of PSMN5R6-100YSFX is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PSMN5R6-100YSFX Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	100 V
Current - Continuous Drain (Id) @ 25°C:	120A (Tj)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	-
Vgs(th) (Max) @ Id:	-
Gate Charge (Qg) (Max) @ Vgs:	63 nC @ 10 V
Vgs (Max):	-
Input Capacitance (Ciss) (Max) @ Vds:	-
FET Feature:	-
Power Dissipation (Max):	294W
Operating Temperature:	175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	LFPAK56, Power-SO8
Package / Case:	SOT-1023, 4-LFPAK
