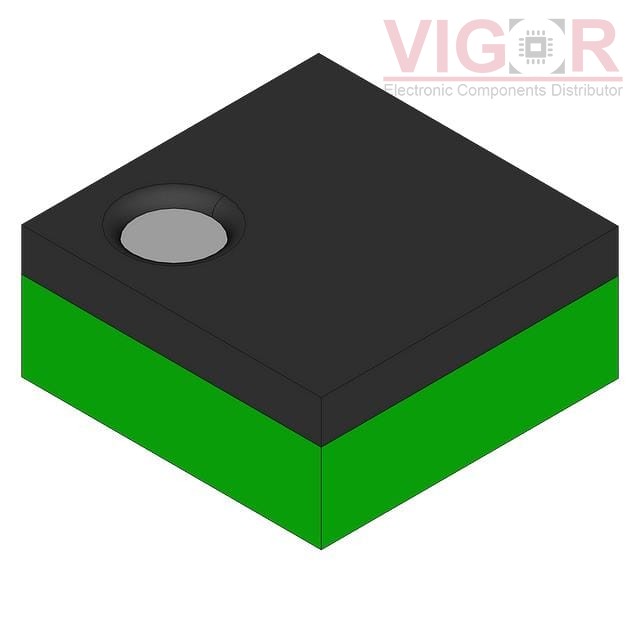

FDZ294N

Part No :: FDZ294N

Manufacturer: VIGOR

Description: MOSFET N-CH 20V 6A 9BGA

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: FDZ294N PDF

Availability: 53580 pieces

Current price of FDZ294N is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

FDZ294N Specifications

Type	Description
Series:	PowerTrench®
Package:	Bulk
Part Status:	Obsolete
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	20 V
Current - Continuous Drain (Id) @ 25°C:	6A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	2.5V, 4.5V
Rds On (Max) @ Id, Vgs:	23mOhm @ 6A, 4.5V
Vgs(th) (Max) @ Id:	1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	10 nC @ 4.5 V
Vgs (Max):	±12V
Input Capacitance (Ciss) (Max) @ Vds:	670 pF @ 10 V
FET Feature:	-
Power Dissipation (Max):	1.7W (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	9-BGA (1.5x1.6)
Package / Case:	9-VFBGA
