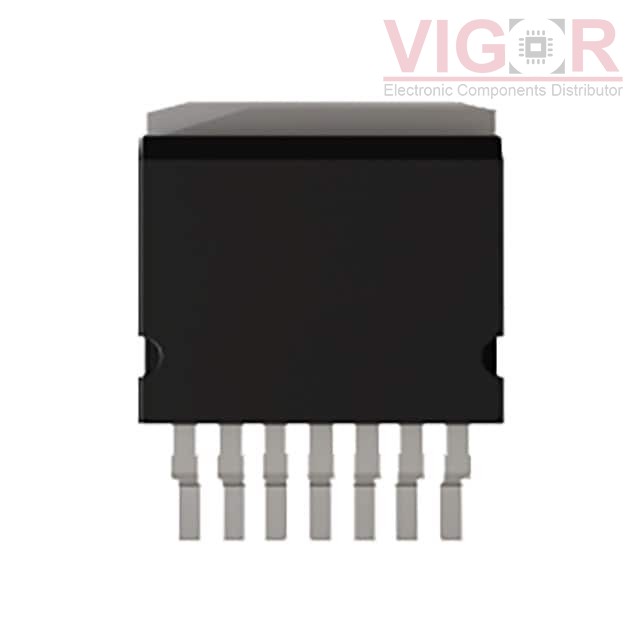

SCT3040KW7TL

Image is for reference,
please contact us to get the real picture

Part No :: SCT3040KW7TL

Manufacturer: ROHM Semiconductor

Description: TRANS SJT N-CH 1200V 56A TO263-7

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: SCT3040KW7TL PDF

Availability: 994 pieces

Unit Price: ~~$36.52000~~

Current price of SCT3040KW7TL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SCT3040KW7TL Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	SiC (Silicon Carbide Junction Transistor)
Drain to Source Voltage (Vdss):	1200 V
Current - Continuous Drain (Id) @ 25°C:	56A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	-
Rds On (Max) @ Id, Vgs:	52mOhm @ 20A, 18V
Vgs(th) (Max) @ Id:	5.6V @ 10mA
Gate Charge (Qg) (Max) @ Vgs:	107 nC @ 18 V
Vgs (Max):	+22V, -4V
Input Capacitance (Ciss) (Max) @ Vds:	1337 pF @ 800 V
FET Feature:	-
Power Dissipation (Max):	267W
Operating Temperature:	175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	TO-263-7
Package / Case:	TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
