RM4P20ES6

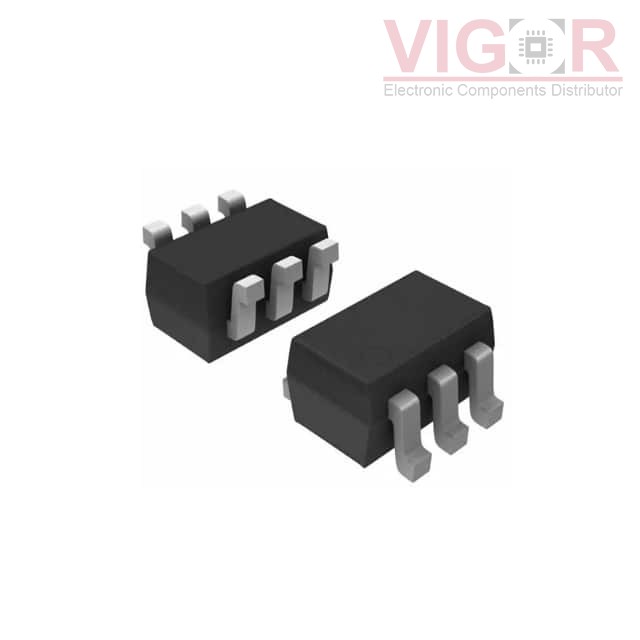

Image is for reference,
please contact us to get the real picture

Part No :: RM4P20ES6

Manufacturer: Rectron USA

Description: MOSFET P-CH 20V 3A/4.1A SOT23-6

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: RM4P20ES6 PDF

Availability: 0 pieces

Unit Price: ~~$0.06900~~

Current price of RM4P20ES6 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

RM4P20ES6 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	20 V
Current - Continuous Drain (Id) @ 25°C:	3A (Ta), 4.1A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	2.5V, 4.5V
Rds On (Max) @ Id, Vgs:	52mOhm @ 4.1A, 4.5V
Vgs(th) (Max) @ Id:	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	-
Vgs (Max):	±12V
Input Capacitance (Ciss) (Max) @ Vds:	740 pF @ 4 V
FET Feature:	-
Power Dissipation (Max):	1.7W (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	SOT-23-6
Package / Case:	SOT-23-6
