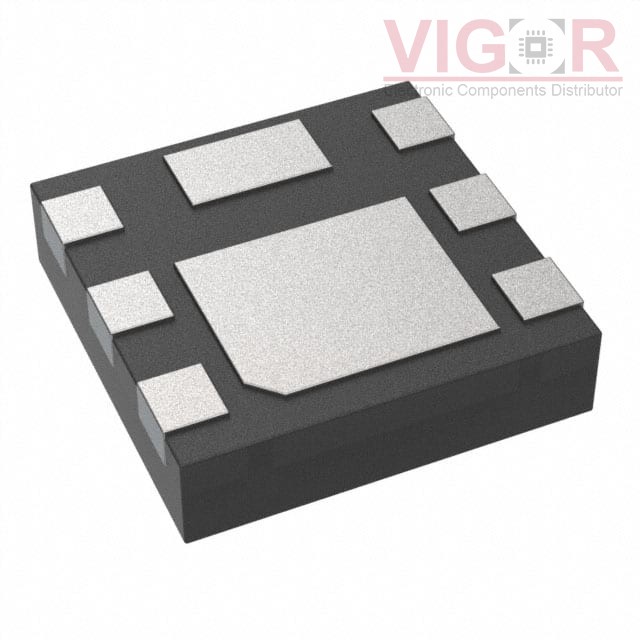

DMTH6016LFDFW-13

Part No :: DMTH6016LFDFW-13

Manufacturer: Zetex Semiconductors (Diodes Inc.)

Description: MOSFET N-CH 60V 9.4A 6UDFN

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: DMTH6016LFDFW-13 PDF

Availability: 0 pieces

Current price of DMTH6016LFDFW-13 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

DMTH6016LFDFW-13 Specifications

Type	Description
Series:	Automotive, AEC-Q101
Package:	Tape & Reel (TR)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	60 V
Current - Continuous Drain (Id) @ 25°C:	9.4A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	18mOhm @ 10A, 10V
Vgs(th) (Max) @ Id:	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	15.3 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	925 pF @ 30 V
FET Feature:	-
Power Dissipation (Max):	1.06W (Ta)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	U-DFN2020-6
Package / Case:	6-UDFN Exposed Pad

Please confirm the specifications of the products when ordering.
