TSM70N600CH C5G

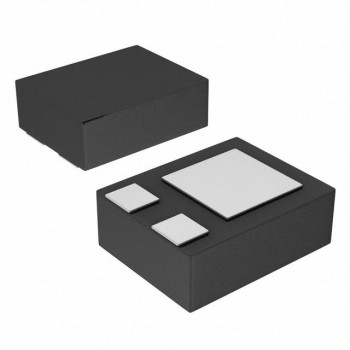

Image is for reference,
please contact us to get the real picture

Part No :: TSM70N600CH C5G

Manufacturer: TSC (Taiwan Semiconductor)

Description: MOSFET N-CHANNEL 700V 8A TO251

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: TSM70N600CH C5G PDF

Availability: 805 pieces

Unit Price: ~~$2.84000~~

Current price of TSM70N600CH C5G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TSM70N600CH C5G Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	700 V
Current - Continuous Drain (Id) @ 25°C:	8A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	600mOhm @ 4A, 10V
Vgs(th) (Max) @ Id:	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	12.6 nC @ 10 V
Vgs (Max):	±30V
Input Capacitance (Ciss) (Max) @ Vds:	743 pF @ 100 V
FET Feature:	-
Power Dissipation (Max):	83W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	TO-251 (IPAK)
Package / Case:	TO-251-3 Short Leads, IPak, TO-251AA

Please confirm the specifications of the products when ordering.
