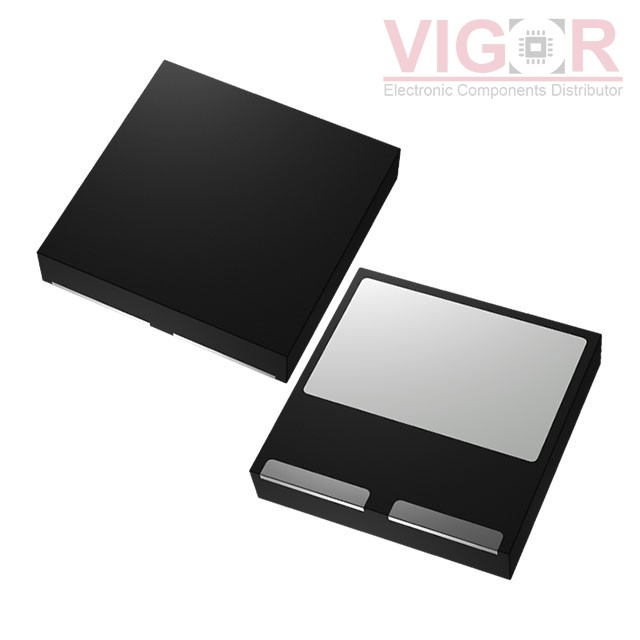

TPH3208LDG

Part No :: TPH3208LDG

Manufacturer: Transphorm

Description: GANFET N-CH 650V 20A 3PQFN

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: TPH3208LDG PDF

Availability: 285 pieces

Current price of TPH3208LDG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TPH3208LDG Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
FET Type:	N-Channel
Technology:	GaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss):	650 V
Current - Continuous Drain (Id) @ 25°C:	20A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	130mOhm @ 13A, 8V
Vgs(th) (Max) @ Id:	2.6V @ 300µA
Gate Charge (Qg) (Max) @ Vgs:	14 nC @ 8 V
Vgs (Max):	±18V
Input Capacitance (Ciss) (Max) @ Vds:	760 pF @ 400 V
FET Feature:	-
Power Dissipation (Max):	96W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	3-PQFN (8x8)
Package / Case:	3-PowerDFN
