SIRA54DP-T1-GE3

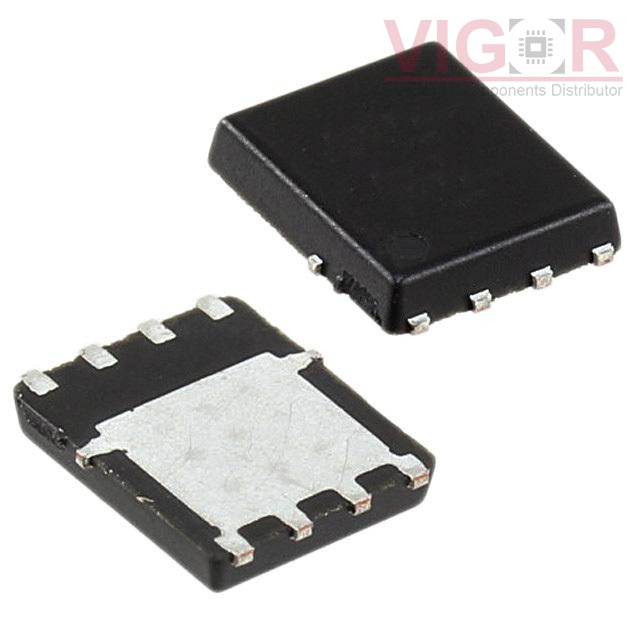

Image is for reference,
please contact us to get the real picture

Part No :: SIRA54DP-T1-GE3

Manufacturer: Vishay / Siliconix

Description: MOSFET N-CH 40V 60A PPAK SO-8

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: SIRA54DP-T1-GE3 PDF

Availability: 21 pieces

Unit Price: ~~$1.23000~~

Current price of SIRA54DP-T1-GE3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SIRA54DP-T1-GE3 Specifications

Type	Description
Series:	TrenchFET® Gen IV
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	40 V
Current - Continuous Drain (Id) @ 25°C:	60A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	2.35mOhm @ 15A, 10V
Vgs(th) (Max) @ Id:	2.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	48 nC @ 4.5 V
Vgs (Max):	+20V, -16V
Input Capacitance (Ciss) (Max) @ Vds:	5300 pF @ 20 V
FET Feature:	-
Power Dissipation (Max):	36.7W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	PowerPAK® SO-8
Package / Case:	PowerPAK® SO-8
