PXN9R0-30QLJ

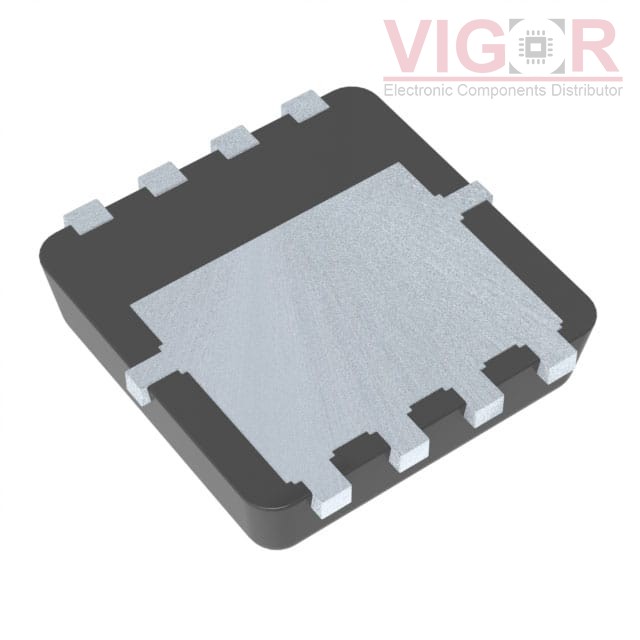

Image is for reference,
please contact us to get the real picture

Part No :: PXN9R0-30QLJ

Manufacturer: Nexperia

Description: PXN9R0-30QL/SOT8002/MLPAK33

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: PXN9R0-30QLJ PDF

Availability: 3000 pieces

Unit Price: ~~$0.45000~~

Current price of PXN9R0-30QLJ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PXN9R0-30QLJ Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	30 V
Current - Continuous Drain (Id) @ 25°C:	11.4A (Ta), 41.8A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	9.1mOhm @ 11.4A, 10V
Vgs(th) (Max) @ Id:	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	20.7 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	865 pF @ 15 V
FET Feature:	-
Power Dissipation (Max):	1.9W (Ta), 26W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	MLPAK33
Package / Case:	8-PowerVDFN
