TSM4424CS RVG

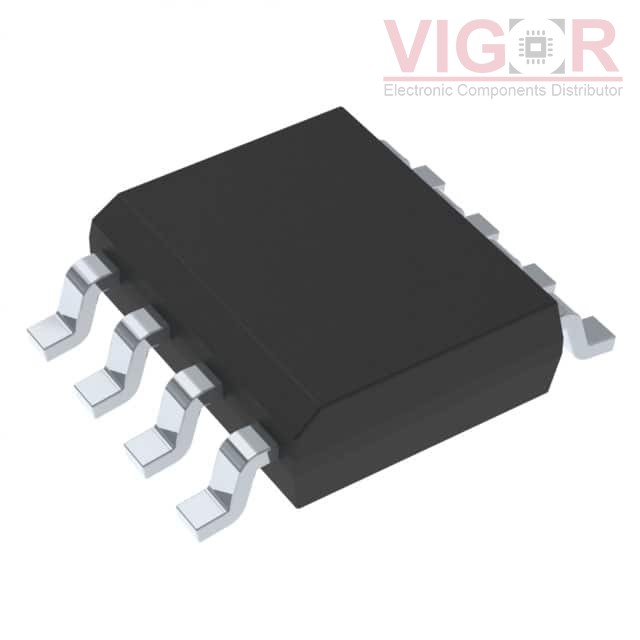

Image is for reference,
please contact us to get the real picture

Part No :: TSM4424CS RVG

Manufacturer: TSC (Taiwan Semiconductor)

Description: MOSFET N-CHANNEL 20V 8A 8SOP

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: TSM4424CS RVG PDF

Availability: 2429 pieces

Unit Price: ~~$0.57000~~

Current price of TSM4424CS RVG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TSM4424CS RVG Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	20 V
Current - Continuous Drain (Id) @ 25°C:	8A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	1.8V, 4.5V
Rds On (Max) @ Id, Vgs:	30mOhm @ 4.5A, 4.5V
Vgs(th) (Max) @ Id:	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	11.2 nC @ 4.5 V
Vgs (Max):	±8V
Input Capacitance (Ciss) (Max) @ Vds:	500 pF @ 10 V
FET Feature:	-
Power Dissipation (Max):	2.5W (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	8-SOP
Package / Case:	8-SOIC (0.154", 3.90mm Width)

Please confirm the specifications of the products when ordering.
