BSB104N08NP3GXUSA1

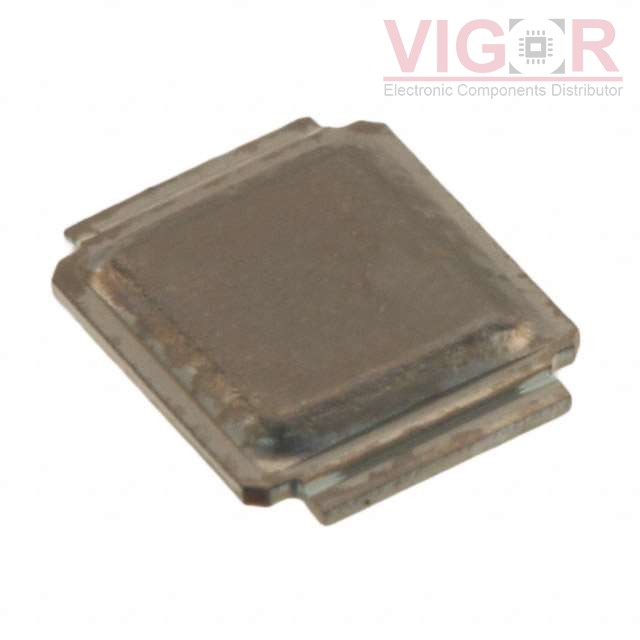

Image is for reference,
please contact us to get the real picture

Part No :: BSB104N08NP3GXUSA1

Manufacturer: IR (Infineon Technologies)

Description: MOSFET N-CH 80V 13A/50A 2WDSON

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: BSB104N08NP3GXUSA1 PDF

Availability: 0 pieces

Unit Price: ~~$0.78768~~

Current price of BSB104N08NP3GXUSA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

BSB104N08NP3GXUSA1 Specifications

Type	Description
Series:	OptiMOS™
Package:	Tape & Reel (TR)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	80 V
Current - Continuous Drain (Id) @ 25°C:	13A (Ta), 50A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	10.4mOhm @ 10A, 10V
Vgs(th) (Max) @ Id:	3.5V @ 40µA
Gate Charge (Qg) (Max) @ Vgs:	31 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	2100 pF @ 40 V
FET Feature:	-
Power Dissipation (Max):	2.8W (Ta), 42W (Tc)
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	MG-WDSON-2, CanPAK M™
Package / Case:	3-WDSON

Please confirm the specifications of the products when ordering.
