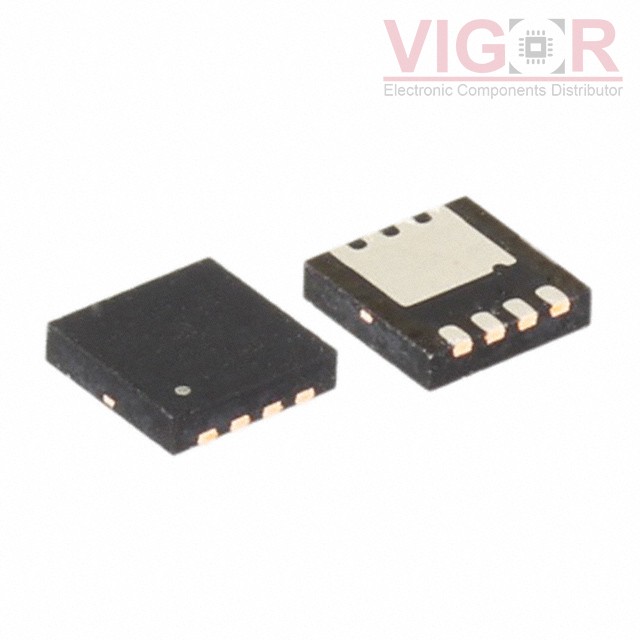

FDMC4435BZ-F126

Part No :: FDMC4435BZ-F126

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: MOSFET P-CH 30V 8.5A/18A 8MLP

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: FDMC4435BZ-F126 PDF

Availability: 70993000 pieces

Current price of FDMC4435BZ-F126 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

FDMC4435BZ-F126 Specifications

Type	Description
Series:	PowerTrench®
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	30 V
Current - Continuous Drain (Id) @ 25°C:	8.5A (Ta), 18A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	20mOhm @ 8.5A, 10V
Vgs(th) (Max) @ Id:	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	46 nC @ 10 V
Vgs (Max):	±25V
Input Capacitance (Ciss) (Max) @ Vds:	2045 pF @ 15 V
FET Feature:	-
Power Dissipation (Max):	2.3W (Ta), 31W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	8-MLP (3.3x3.3)
Package / Case:	8-PowerWDFN
