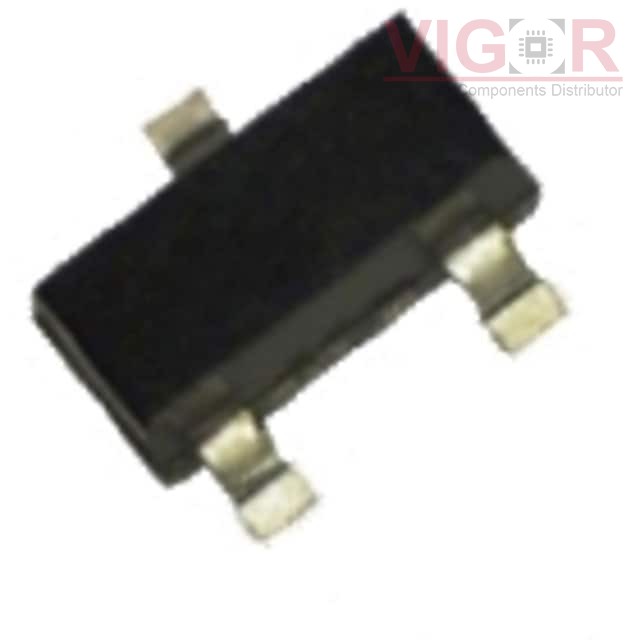

2N7002KA

Part No :: 2N7002KA

Manufacturer: Rectron USA

Description: MOSFET N-CHANNEL 60V 115MA SOT23

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: 2N7002KA PDF

Availability: 0 pieces

Current price of 2N7002KA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

2N7002KA Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	60 V
Current - Continuous Drain (Id) @ 25°C:	115mA (Ta)
Drive Voltage (Max Rds On, Min Rds On):	5V, 10V
Rds On (Max) @ Id, Vgs:	3Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id:	2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	-
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	50 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	225mW (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	SOT-23
Package / Case:	TO-236-3, SC-59, SOT-23-3

Please confirm the specifications of the products when ordering.
